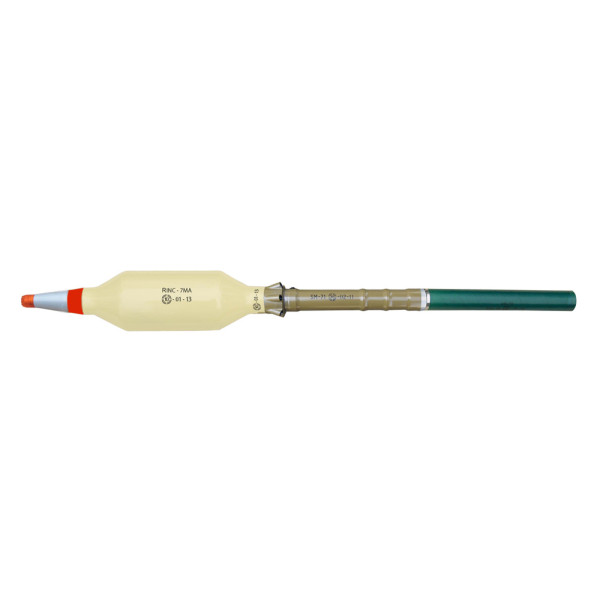

40/106 mm RINC-7MA

Overview

The 40/106 mm Round RINC-7MA with Incendiary Grenade GINC-7MA is intended for distant ignition of:

environment of enemy’s fire points located in long-term emplacements, long-term camouflaged emplacements, bunkers, dugouts and buildings, transport means and light-armoured materials;

ground area with diameter over 30 m,

POL stations and stores

spreading special incendiary composition at the point of impact.

The Round consists of Incendiary Grenade GINC-7MA and Propellant Charge CP-73. The Grenade is completed with Sustainer Motor SM-71 and Point Detonating Fuze AF72 with super quick and graze (anti-ricochet) function, independent of impact angle.

Packing 6 Rounds are packed in a wooden case as follows
6 Grenades GINC-7MA (each one in airtight plastic bag)
6 Propellant Charges CP-73 (each one in a plastic container; each 3 pcs. plastic containers in an airtight plastic bag).

Packing

6 Rounds are packed in a wooden case as follows

6 Grenades GINC-7MA (each one in airtight plastic bag)

6 Propellant Charges CP-73 (each one in a plastic container; each 3 pcs. plastic containers in an airtight plastic bag).

TECHNICAL CHARACTERISTICS	RINC-7MA
Caliber, mm	40
Warhead calibre, mm	106
Weight of the round, kg	4.6 max
Weight of the grenade, kg	4.2
Max firing range, m	1200
Direct fire range, m	200
Weight of Propellant Charge, kg	0.400 max
Length of Grenade, mm	718 max
Length of Propellant Charge, mm	295 max
Max range, m	1 200
Direct fire range, m	200
Muzzle velocity, m/s	70
Fire rate, shots/min	4÷6
Operation temperature range, °C	from minus 40 to 50
The Round consists
Fuze type	Point -detonating fuze AF72 with superquick and graze(anti-ricochet) function, independent of impact angle.
Smoke Grenade	GINC-7MA
Sustainer Motor	SM-71
Propellant Charge	CP-73

TECHNICAL CHARACTERISTICS

RINC-7MA

Caliber, mm

Warhead calibre, mm

106

Weight of the round, kg

4.6 max

Weight of the grenade, kg

4.2

Max firing range, m

1200

Direct fire range, m

200

Weight of Propellant Charge, kg

0.400 max

Length of Grenade, mm

718 max

Length of Propellant Charge, mm

295 max

Max range, m

1 200

Direct fire range, m

200

Muzzle velocity, m/s

Fire rate, shots/min

4÷6

Operation temperature range, °C

from minus 40 to 50

The Round consists

Fuze type

Point -detonating fuze AF72 with superquick and graze(anti-ricochet) function, independent of impact angle.

Smoke Grenade

GINC-7MA

Sustainer Motor

SM-71

Propellant Charge

CP-73

Weapon Systems
ARSENAL ATGL-L2 and Russian RPG-7V Light Anti-Tank Grenade Launchers

Weapon Systems

ARSENAL ATGL-L2 and Russian RPG-7V Light Anti-Tank Grenade Launchers

Wooden case
Dimensions, mm	810x365x232
Weight, kg	47
Volume, m³	0.069
CLASS OF EXPLOSION HAZARD	1.1F, UN 0292

Wooden case

Dimensions, mm

810x365x232

Weight, kg

Volume, m³

0.069

CLASS OF EXPLOSION HAZARD

1.1F, UN 0292
