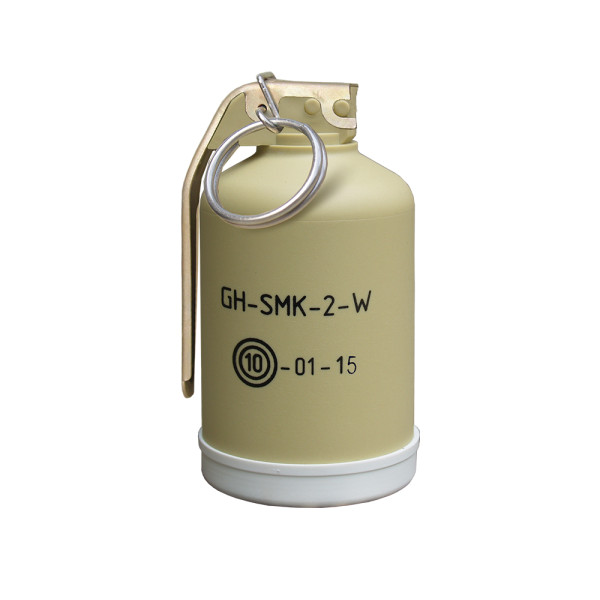

GH-SMK-2-W

SMOKE HAND GRENADE GH-SMK-2-W (with red phophorus)

NSN: 1330-50-001-2655

Performance:

- instant creation of smoke screen that can provide safe movement of units in the open;

- communication and signaling of territories and sites;

- protect friendly units from enemies shooting with firearms that use mechanical or optical sight.

Packing 36 Grenades, each one wrapped in a wax paper, are packed in a wooden case.
Wooden case dimensions, mm	420x400x216
Wooden case gross weight, kg	16
Wooden case volume, m³	0.034

Packing

36 Grenades, each one wrapped in a wax paper, are packed in a wooden case.

Wooden case dimensions, mm

420x400x216

Wooden case gross weight, kg

Wooden case volume, m³

0.034

TECHNICAL CHARACTERISTICS	GH-SMK-2-W
Grenade type	smoke
Fuze type	AF17
Grenade weight, g	270 max
Overall dimensions, mm
● Diameter	59
● Height	108
Filling	Smoke composition based on red phosphorus
Fuze delay time, s	from 2 to 4
Time for intensive smoke creation, s	not more than 5
Time for smoke screen existence, s	at least 15
Safety radius, m	not more than 5
Operational temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD	1.4G; UN 0303

TECHNICAL CHARACTERISTICS

GH-SMK-2-W

Grenade type

smoke

Fuze type

AF17

Grenade weight, g

270 max

Overall dimensions, mm

● Diameter

● Height

108

Filling

Smoke composition based on red phosphorus

Fuze delay time, s

from 2 to 4

Time for intensive smoke creation, s

not more than 5

Time for smoke screen existence, s

at least 15

Safety radius, m

not more than 5

Operational temperature range, °C

from minus 43 to 52

CLASS OF EXPLOSION HAZARD

1.4G; UN 0303
