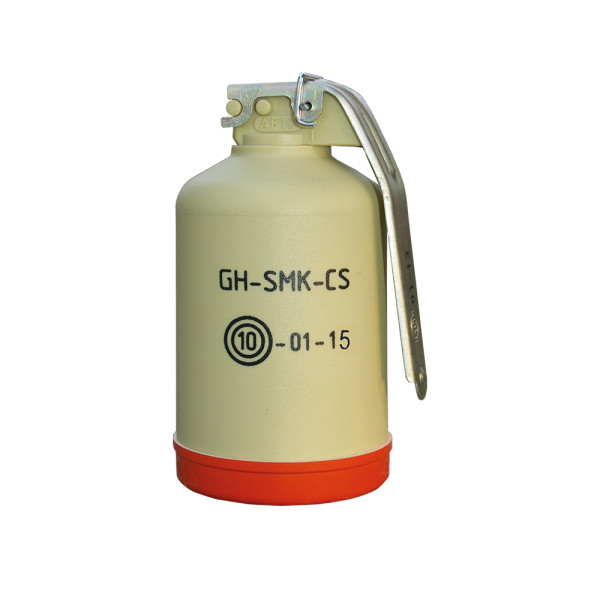

GH-SMK-CS

Smoke Hand Grenades with Irritant action GH-SMK-CS

NSN: 1330-50-001-2656

Performance:

- suppress the psychic stability of the delinquents during counter terrorist and special riot control
operations;

- obtain the incapacitating effect, i.e. temporarily incapacitate a person, preventing from active well-directed
operations and physical aggressive activity, via instant creation of aerosol cloud with irritant substance and
smoke screen.

Packing 36 Grenades, each one wrapped in a wax paper, are packed in a wooden case
Wooden case dimensions, mm	420x400x216
Wooden case gross weight, kg	16
Wooden case volume, m³	0.034

Packing

36 Grenades, each one wrapped in a wax paper, are packed in a wooden case

Wooden case dimensions, mm

420x400x216

Wooden case gross weight, kg

Wooden case volume, m³

0.034

TECHNICAL CHARACTERISTICS	GH-SMK-CS
Weight, kg	0.27 max
Overall dimensions, mm
● Diameter	59
● Height	108
Fuze type	AF17
Fuze delay time, s	from 2 to 4
Irritant agent	CS
Time for intensive creation of aerosol, s	not more than 5
Time for aerosol cloud existence, s	not less than 15
Aerosol cloud volume, m3	at least 65
Filling	Composition based on CS and smoke composition based on red phosphorus
Safety radius, m	not more than 5
Operational temperature range, °C	from minus 43 to 52
CLASS OF EXPLOSION HAZARD	1.4G (6.1, 8); UN 0301

TECHNICAL CHARACTERISTICS

GH-SMK-CS

Weight, kg

0.27 max

Overall dimensions, mm

● Diameter

● Height

108

Fuze type

AF17

Fuze delay time, s

from 2 to 4

Irritant agent

Time for intensive creation of aerosol, s

not more than 5

Time for aerosol cloud existence, s

not less than 15

Aerosol cloud volume, m3

at least 65

Filling

Composition based on CS and smoke composition based on red phosphorus

Safety radius, m

not more than 5

Operational temperature range, °C

from minus 43 to 52

CLASS OF EXPLOSION HAZARD

1.4G (6.1, 8); UN 0301
