Smoke Hand Grenades

SMK-O, SMK-W, SMK-R, SMK-B, SMK-G, SMK-Y

SMK-O, SMK-W, SMK-R, SMK-B, SMK-G, SMK-Y

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

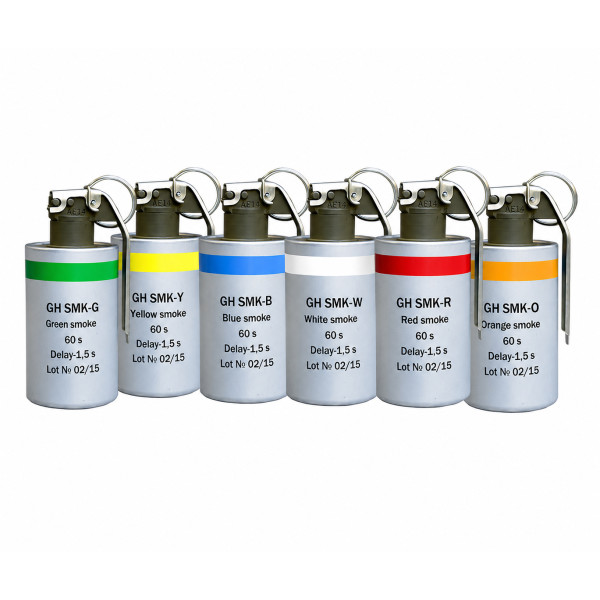

Smoke Hand Grenades GH SMK-O, GH SMK-W, GH SMK-R, GH SMK-B,
GH SMK-G, GH SMK-Y


GH SMK-O: NSN 1330-50-000-7425
GH-SMK-W: NSN 1330-50-000-7424
GH-SMK-R: NSN 1330-50-001-0626
GH-SMK-B: NSN 1330-50-001-1947
GH-SMK-G: NSN 1330-50-001-1957
GH-SMK-Y: NSN 1330-50-001-1946

The Smoke Hand Grenades GH SMK-O, GH SMK-W, GH SMK-R, GH SMK-B, GH SMK-G, GH SMK-Y  are intended for:

-   communication and for signaling of territories and sites;

-   creation of smoke-screen (cloud) and temporary cover of materiel and personnel;

-   purposeful diversion;

-   performance of special combat operations.

Packing
20 pcs. Grenades in metal box, 3 pcs. metal box in a wooden case, total 60 Grenades in 1 wooden case
Wooden case dimensions, mm875x398x206
Wooden case gross weight, kg27
Wooden case volume, m30.072
TECHNICAL CHARACTERISTICS
GH SMK-O, GH SMK-W, GH SMK-R, GH SMK-B, GH SMK-G, GH SMK-Y
Body diameter, mm51
Height with fuse AF14, mm120
Weight, g215
Fuze typeIgniting Delay Fuze AF 14
Time of delayed action after pulling the arming pin and releasing the handle, s1.5+2.3
Smoke colourO - orange, W - white, R - red, B - blue, G - green, Y - yellow
Time of intensive smoke emission, snot less than 60
FillingPyrotechnic smoke composition
Smoke composition typeColorant , oxide matter, fuel
Operation temperature range, °Cfrom minus 20 to 50
CLASS OF EXPLOSION HAZARD1.4G, UN 0303
