Sound and Flash hand grenades

GH S&F-1-01

GH S&F-1-01

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

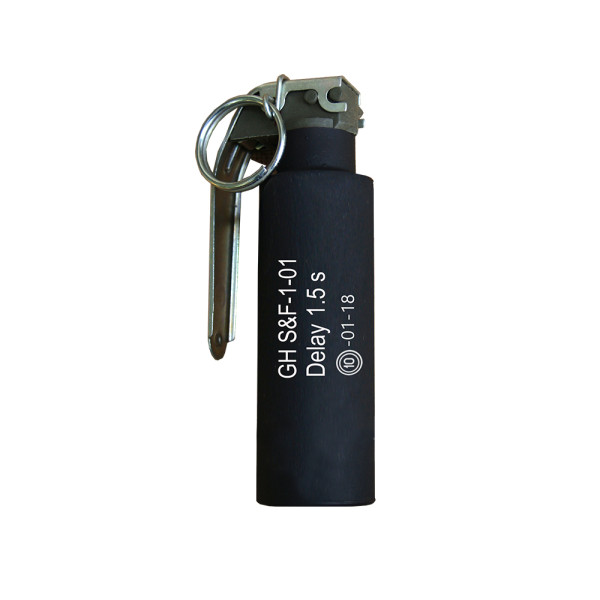

Sound & Flash Hand Grenade GH S&F-1-01

NSN: 1330-50-000-1357

The Sound & Flash Hand Grenade GH S&F-1-01 is a product, which can cause temporary disorientation, and is used by Police and Military Forces to incapacitate criminals, handle hostage situations, assist counter terrorist operations, as well as, operations for order restoration.

In order to reduce the risk of dangerous fragments, the grenade body is made of cardboard.

The grenade stuns and immobilizes the persons in the near vicinity by means of loud, temporarily paralysing noise and blinding flash, providing an opportunity for authorities to seize the initiative and to deal with the dangerous situation.

This grenade does not cause physiological damage.



Packing
30 Grenades are packed in a metal airtight box. Three metal boxes (90 Grenades) are arranged in a wooden case.
GH S&F-1-01
Wooden case dimensions, mm875x398x206
Wooden case gross weight, kg25
Wooden case volume, m30.072
TECHNICAL CHARACTERISTICS
GH S&F-1-01
Body diameter, mm35
Grenade body materialcardboard
Height with fuse AF14 (FID-1), mm120 max
Weight, g116 max
Intensity of the sound (thunder), dBnot less than 165
Luminous intensity, cdnot less than 1 600 000
Effect of the explosionintense thunder and blinding light
Body materialcardboard
Operational temperature range, °Cfrom minus 20 to 50
CLASS OF EXPLOSION HAZARD1.3G, UN 0488
