Sound and Flash hand grenades

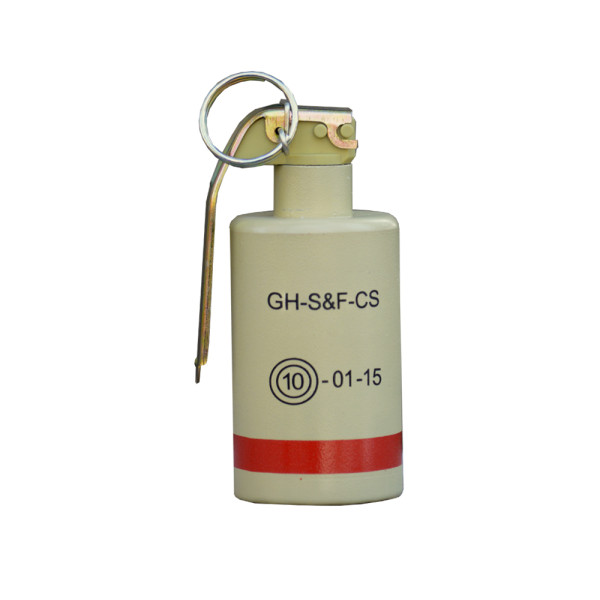

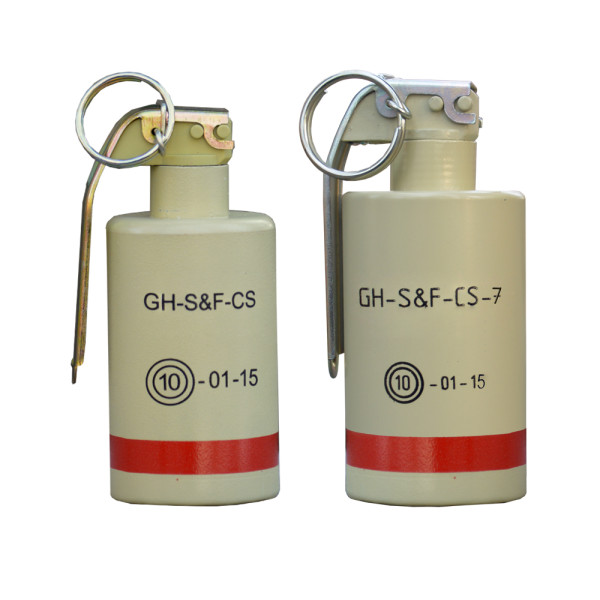

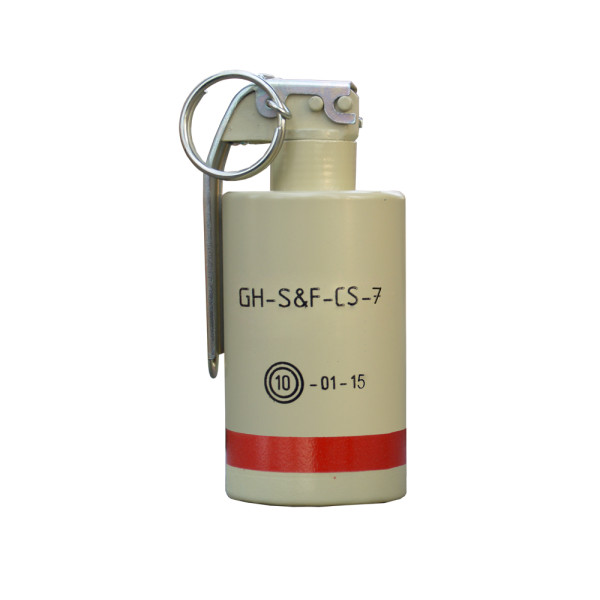

GH-S&F-CS and GH-S&F-CS-7

GH-S&F-CS and GH-S&F-CS-7
GH-S&F-CS and GH-S&F-CS-7
GH-S&F-CS and GH-S&F-CS-7

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

Sound and Flash Hand Grenades  with irritant action GH-S&F-CS and GH-S&F-CS-7

NSN: GH-S&F-CS-7

1330-50-001-4762



The Hand Grenades  GH-S&F-CS and GH-S&F-CS-7 are used to suppress the psychic stability of the delinquents upon special and riot control operations.

Overview

The purpose of the intended use of these Grenades is to obtain the incapacitating effect, i.e. temporarily incapacitate a person, preventing from active well-directed operations and physical aggressive activity via dispersion of cluster elements with sound & flash action and:





Packing
20 Grenades are packed in a metal airtight box. Three metal boxes are arranged in a wooden case (60 grenades totally)
GH-S&F-CSGH-S&F-CS-7
Wooden case dimensions, mm 875 x 398 x 206875 x 398 x 206
Wooden case gross weight, kg 2727
Wooden case volume, m3 0.0720.072
TECHNICAL CHARACTERISTICS
GH-S&F-CSGH-S&F-CS-7
Weight, kg0.2 max0.23 max
Overall dimensions, mm
● Diameter5151
Overall dimensions, mm height118118
Fuze type AF14AF14
Fuze delay time, s from 1.5 to 2.3from 1.5 to 2.3
Irritant agentCSCS
Number of clustered elements, pcs. 14(S&F and CS)7(S&F and CS)
Time for creation of aerosol cloud, s 1.5 1.5
Intensity of the sound (thunder), dBnot less than 135not less than 135
Operational temperature range, °C from minus 43 to 52from minus 43 to 52
CLASS OF EXPLOSION HAZARD 1.4G; (6.1,8);UN 03011.4G; (6.1,8);UN 0452
