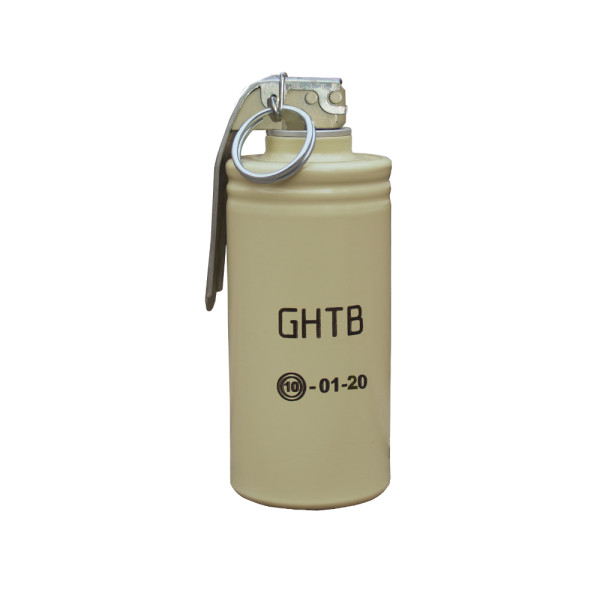

Thermobaric Hand Grenade GHTB

NSN: 1330-50-001-1754

GHTB is used for combined destruction, both by air-blast and thermal emission:

-   of the enemy manpower and equipment located mainly in closed and semi-closed rooms, trenches,
field shelters, buildings, artificial obstacle, caves and in the open, as well as

-   of light armoured and unarmoured vehicles.

It is used against terrorist and criminal groups performing terrorist and sabotage acts in peace and
wartime.

Packing
36 Grenades, wrapped in waxed paper, are packed in a wooden case
Wooden case dimensions, mm420x400x216
Wooden case gross weight, kg25
Wooden case volume, m30.034
TECHNICAL CHARACTERISTICS
GHTB
Weight, kg0.53 max
Overall dimensions
● Diameter, mm58
● Height, mm145
Fuze, typeAF11 with delay action, safety pin and safety lever
Delay time, sfrom 3.2 to 4.2
Radius of defeat outdoor, m6
Radius of defeat indoor, m12
Weight of the thermobaric composition, kg0.32
Operational temperature range,degrees °Cfrom minus 43 to 52
CLASS OF EXPLOSION HAZARD1.1F; UN 0292
