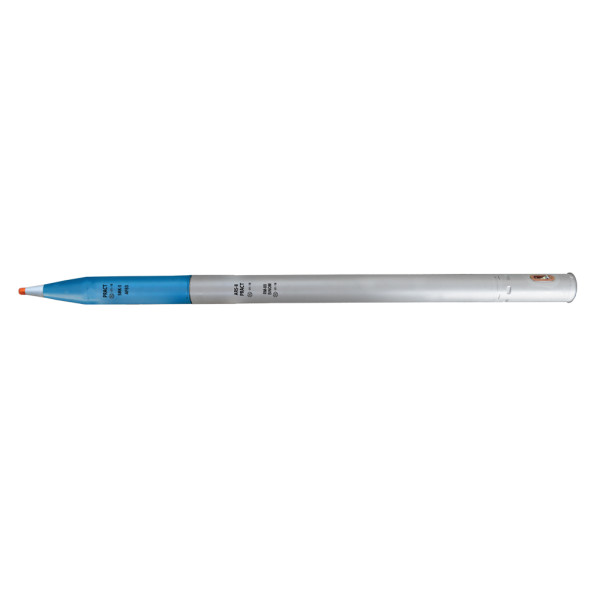

ARS-8 PRACT

Main Features:

The 80 mm Unguided Aviation Rocket ARS-8 PRACT is of “air–to–ground” type, designed to be fired from the B8, B8M, B8M-1, B8В20-A, B-8V7 and B-8S7 rocket pods carried on aircraft and helicopters of the front-line and army aviation. The Rocket ARS-8 PRACT with practice warhead with smoke composition is intended for training of the personnel.

MAIN-TECHNICAL CHARACTERISTICS	ARS-8 PRACT
Type	Practice Unguided Aviation Rocket
Caliber, mm	80
Rocket overall length, mm	1542 max
Weight, kg
● Rocket total weight	11.5 max
● Warhead weight (without the cup)	3.6
Muzzle velocity, m/s	from 55 to 75
Maximum velocity, m/s	600
Rocket firing range, m	from 1300 to 4000
Probable deviation of the technical circular dispersion in the picture plane upon fire
● With aircraft flying at speed 600 ... 1200 km/h, mrad	≤ 3
● With helicopter flying at speed 200 ... 300 km/h, mrad	≤8
Warhead	PRACT with smoke composition
Fuze	AF83, point-detonating, with super-quick and check action, and distant arming
Operational temperature range, °C	from minus 60 to 60
Shelf life	15 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.

MAIN-TECHNICAL CHARACTERISTICS

ARS-8 PRACT

Type

Practice Unguided Aviation Rocket

Caliber, mm

Rocket overall length, mm

1542 max

Weight, kg

● Rocket total weight

11.5 max

● Warhead weight (without the cup)

3.6

Muzzle velocity, m/s

from 55 to 75

Maximum velocity, m/s

600

Rocket firing range, m

from 1300 to 4000

Probable deviation of the technical circular dispersion in the picture plane upon fire

● With aircraft flying at speed 600 ... 1200 km/h, mrad

≤ 3

● With helicopter flying at speed 200 ... 300 km/h, mrad

≤8

Warhead

PRACT with smoke composition

Fuze

AF83, point-detonating, with super-quick and check action, and distant arming

Operational temperature range, °C

from minus 60 to 60

Shelf life

15 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.

Packing Four (4) Rockets per wooden case
Wooden case dimensions, mm	1675 x 315 x 290
Wooden case volume, m³	0.153
Gross weight, kg:	72
CLASS OF EXPLOSION HAZARD	1.2G, UN 0015

Packing

Four (4) Rockets per wooden case

Wooden case dimensions, mm

1675 x 315 x 290

Wooden case volume, m³

0.153

Gross weight, kg:

CLASS OF EXPLOSION HAZARD

1.2G, UN 0015
