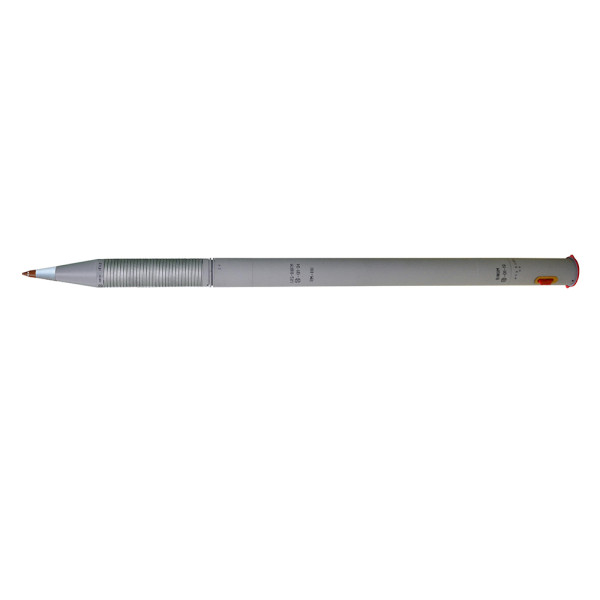

ARS-8OFM

Main technical characteristics	ARS-8OFM
Type	Unguided Aviation Rocket with high-explosive fragmentation effect
Caliber, mm	80
Rocket overall length, mm	1533 max
Weight, kg
● Rocket total	11.6 average
● Warhead	3.8 average
● Explosive	1.38 average
Type of explosive filling	RDX (A-IX-1)
Maximum velocity, m/s	600
Forming fragments with a mass of not less than 2 g, pcs.	about 670
Rocket firing range, m	from 1300 to 4000
Probable deviation of the technical circular dispersion in the picture plane upon fire
● With aircraft flying at speed 600 ... 1200 km/h, mrad	≤3
● With helicopter flying at speed 200 ... 300 km/h, mrad	≤8
Fuze	Rocket Nose Impact Fuze with super-quick and check action, AF83
Operational temperature range, °C	from minus 60 to 60

Main technical characteristics

ARS-8OFM

Type

Unguided Aviation Rocket with high-explosive fragmentation effect

Caliber, mm

Rocket overall length, mm

1533 max

Weight, kg

● Rocket total

11.6 average

● Warhead

3.8 average

● Explosive

1.38 average

Type of explosive filling

RDX (A-IX-1)

Maximum velocity, m/s

600

Forming fragments with a mass of not less than 2 g, pcs.

about 670

Rocket firing range, m

from 1300 to 4000

Probable deviation of the technical circular dispersion in the picture plane upon fire

● With aircraft flying at speed 600 ... 1200 km/h, mrad

≤3

● With helicopter flying at speed 200 ... 300 km/h, mrad

≤8

Fuze

Rocket Nose Impact Fuze with super-quick and check action, AF83

Operational temperature range, °C

from minus 60 to 60

PACKING Four (4) Rockets per wooden case	ARS-8OFM
Wooden case dimensions, mm	1675 x 315 x 290
Wooden case volume, m3	0.153
Wooden case gross weight, kg	75
Class of explosion hazard	1.1F, UN 0180

PACKING

Four (4) Rockets per wooden case

ARS-8OFM

Wooden case dimensions, mm

1675 x 315 x 290

Wooden case volume, m3

0.153

Wooden case gross weight, kg

Class of explosion hazard

1.1F, UN 0180
