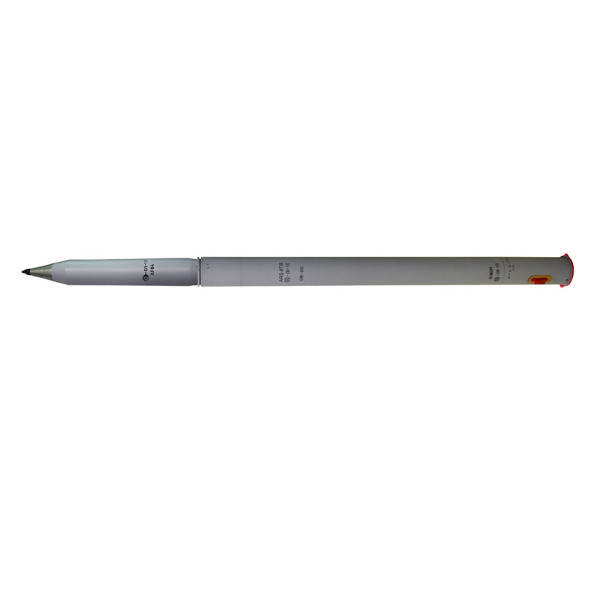

ARS-8TB

MAIN-TECHNICAL CHARACTERISTICS	ARS-8TB
Type	Unguided Aviation Rocket with Thermobaric warhead
Caliber, mm	80
Rocket overall length, mm	1700
Weight, kg
● Rocket total	11.6
● Warhead	3.8
● Thermobaric composition	2.15
Overpressure in the blast center, kg/cm2	30
Temperature in the blast center, °C	3000
Maximum velocity, m/s	590
TNT Equivalent, kg	from 5.5 to 6
Rocket firing range, m	from 1300 to 4000
Probable deviation of the technical circular dispersion in the picture plane upon fire
● With aircraft flying at speed 600 ... 1200 km/h, mrad	≤ 3
● With helicopter flying at speed 200 ... 300 km/h, mrad	≤ 8
Fuze	AF84 - point-detonating, with super-quick and check action, and distant arming
Operational temperature range, °C	from minus 60 to 60

MAIN-TECHNICAL CHARACTERISTICS

ARS-8TB

Type

Unguided Aviation Rocket with Thermobaric warhead

Caliber, mm

Rocket overall length, mm

1700

Weight, kg

● Rocket total

11.6

● Warhead

3.8

● Thermobaric composition

2.15

Overpressure in the blast center, kg/cm2

Temperature in the blast center, °C

3000

Maximum velocity, m/s

590

TNT Equivalent, kg

from 5.5 to 6

Rocket firing range, m

from 1300 to 4000

Probable deviation of the technical circular dispersion in the picture plane upon fire

● With aircraft flying at speed 600 ... 1200 km/h, mrad

≤ 3

● With helicopter flying at speed 200 ... 300 km/h, mrad

≤ 8

Fuze

AF84 - point-detonating, with super-quick and check action, and distant arming

Operational temperature range, °C

from minus 60 to 60

PACKING Four (4) Rockets per wooden case	ARS-8TB
Wooden case dimensions, mm	1780 x 315 x 305
Wooden case volume, m3	0.171
Wooden case gross weight, kg	75
Class of explosion hazard	1.1Е, UN 0181

PACKING

Four (4) Rockets per wooden case

ARS-8TB

Wooden case dimensions, mm

1780 x 315 x 305

Wooden case volume, m3

0.171

Wooden case gross weight, kg

Class of explosion hazard

1.1Е, UN 0181
