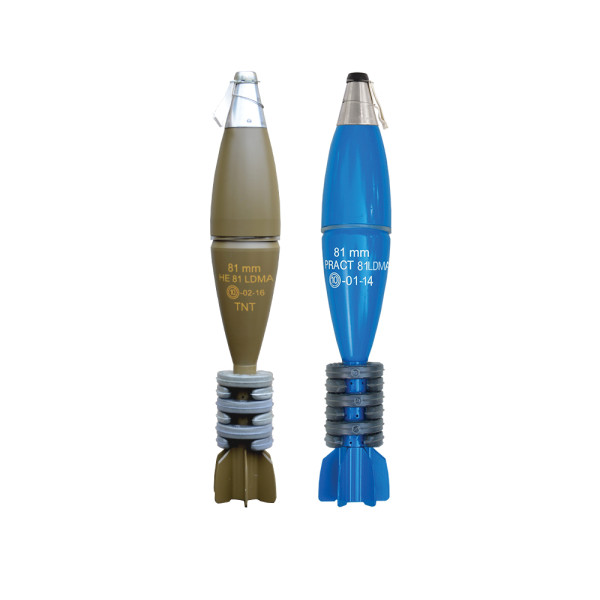

81 mm HE 81LDMA and PRACT 81LDMA

HE 81LDMA: NSN 1315-50-000-0729

PRACT 81LDMA: NSN 1315-50-000-0728

The Mortar Bomb HE 81LDMA is designed to be used with any type of smooth bore 81 mm Mortars of NATO Standard – such as the M81MA, M1, M29A1, M29, L16 A1/A2, M8-522, M081-61C, Tampella, ECIA IN, M8 Hirtenberger, etc., and it is intended for fighting uncovered enemy manpower, as well as unarmored means of transportation.

The Mortar Bomb PRACT 81LDMA is designed to be used with any type of smooth bore 81 mm Mortars of NATO Standard – such as the M81MA, M1, M29A1, M29, L16 A1/A2, M8-522, M081-61C, Tampella, ECIA IN, M8 Hirtenberger, etc.

Overview

The HE 81LDMA is one of the most up-to-date high explosive bombs of 81mm caliber, due to its streamlined design of the body and well calculated and shaped fin stabilizer assy, the bomb can reach 6 200 m firing range which is among the longest and most accurate ranges known for this type of ammunition.
The optimum blast and fragmentation effect of approximately 1 400 effective fragments is achieved by the use of spheroidal graphite cast iron with predominately ferritic structure.

PRACT 81LDMA is used for training purposes, its flight ballistic is identical to those of the high explosive version.
Thanks to its streamlined hull design and well-calculated and shaped stabilizer blade, the 81 mm PRACT 81LDMA reaches a range of 6 200 m, which is among the longest and most accurate ranges known for this type of ammunition.

The Mortar Bombs HE 81LDMA and PRACT 81LDMA are fuzed with AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze or AF621 (Point detonating, super quick action, boresafe type) fuze.

When firing with Mortar M1 do not fire over Charge 4!
When firing with Mortar M29 do not fire over Charge 5!

BALLISTIC DATA	HE 81LDMA	PRACT 81LDMA
Average Maximum Pressure, bar (piezo)	900 (0+6)	900 (0+6)
Average Max Range, m
● 1170 mm barrel	5 768 (0+6)	5768 (0+6)
● 1450 mm barrel	6 200 (0+6)	6200 (0+6)
Average Muzzle velocity, m/s
● 1170 mm barrel	296 (0+6)	296 (0+6)
● 1450 mm barrel	312 (0+6)	312 (0+6)

BALLISTIC DATA

HE 81LDMA

PRACT 81LDMA

Average Maximum Pressure, bar (piezo)

900 (0+6)

Average Max Range, m

● 1170 mm barrel

5 768 (0+6)

5768 (0+6)

● 1450 mm barrel

6 200 (0+6)

6200 (0+6)

Average Muzzle velocity, m/s

● 1170 mm barrel

296 (0+6)

● 1450 mm barrel

312 (0+6)

TECHNICAL CHARACTERISTICS	HE 81LDMA	PRACT 81LDMA
Body material	Spheroidal Graphite Cast Iron	Spheroidal graphite Cast Iron
Length fuzed, mm	489 max	AF66 (496 max)
Weight fuzed, kg	4.15 max	4.15 max
Highest Max Pressure, bar (piezo)	950 (0+6)	950 (0+6)
Weight of Explosive charge (TNT), kg	0.740 max	-
Weight of the inert charge, kg	-	0.740 max
Fuze AF66 arming distance, m	not less than 40	not less than 40
Operating Temperature Range, °C	from minus 40 to 50	from minus 40 to 50
Class of explosion hazard, UN Code	1.2E, UN 0321	1.2E, UN 0321

TECHNICAL CHARACTERISTICS

HE 81LDMA

PRACT 81LDMA

Body material

Spheroidal Graphite Cast Iron

Spheroidal graphite Cast Iron

Length fuzed, mm

489 max

AF66 (496 max)

Weight fuzed, kg

4.15 max

Highest Max Pressure, bar (piezo)

950 (0+6)

Weight of Explosive charge (TNT), kg

0.740 max

Weight of the inert charge, kg

0.740 max

Fuze AF66 arming distance, m

not less than 40

Operating Temperature Range, °C

from minus 40 to 50

Class of explosion hazard, UN Code

1.2E, UN 0321

Packing One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.	HE 81LDMA	PRACT 81LDMA
Case dimensions, mm	600x325x260	600x325x260
Case weight, kg	38	38
Case volume, m³	0.051	0.051

Packing

One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.

HE 81LDMA

PRACT 81LDMA

Case dimensions, mm

600x325x260

Case weight, kg

Case volume, m³

0.051
