81 mm M81MA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

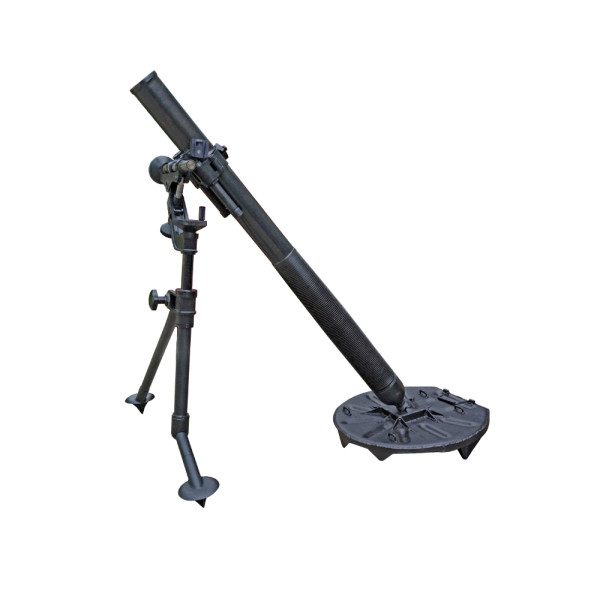

81 mm Mortar M81MA

NSN: 1015-50-000-7414

The 81 mm Mortar M81MA is highest firepower and maximum reliability,
intended to destroy by curved-trajectory fire the enemy manpower in open,
in light field shelters and trenches, as well in counter scarps.

Overview

SPTA set:

Spare parts – firing pin; 2 pcs. leather rings for the shock absorbers.
Tools: Lever; Carrier for cleaning rag; Bent wrench for hexagon socket head screws SW 8 mm.

Accessories – 2 pcs. three-part aiming posts; bag for aiming posts; 2 pairs gloves; bag for spare parts; bag for ammunition; oil can; bag for tools and accessories, 3 pcs. carrying frame with straps; three-part wiper arm; connector for wiper arm; cleaning brush for the barrel, bronze; cleaning brush for the barrel, nylon; muzzle cover.

Main Features:

Perfect weapon for different combat operations;
Indirect fire support for infantry, paratroops and armoured personnel carriers;
High firing capacity and accuracy;
Easy operation and maintenance.

Optional Extras (Paid Separately):

Control quadrant for Mortar KM-1

Packing
1 pcs. In a wooden case
Case dimension, mm	1735x830x445
Net weight, kg	70
Gross weight, kg	133
Case capacity, m³	0.64

SHOOTING RANGE AND PRECISION 81 mm HE81LDMA, PRACT 81LDMA RANGE TABLE
Charge No	Muzzle velocity, m/s	Range, m	Max Pressure, bar (piezo)
0	81	220-635	100
1	143	625-1820	160
2	185	970-2820	250
3	222	1300-3790	350
4	254	1600-4650	450
5	285	1900-5490	650
6	312	2145-6200	800
7	337	2315-6670	900

Specifications	M81MA
Calibre, mm	81
Barrel with breech block length, mm	1480
Base plate diameter, mm	596
Weight
● Total, kg	53.7 (with Mortar Sight)
● Barrel with breech block, kg	16.5
● Base plate assy, kg	24
● Bipod assy, kg	12.2
● Sight MUM-706M, kg	1.0
Elevation range, mils	700-1500
Traverse range, mils	300
Rate of fire, rounds/min	not less than 15
Max range of fire, m	6200
Ammunition	81 mm HE81LDMA, TB81, PRACT 81LDMA, ILL81, ILL81LD, SMK 81RP
Max. operating gas pressure, bar	950
