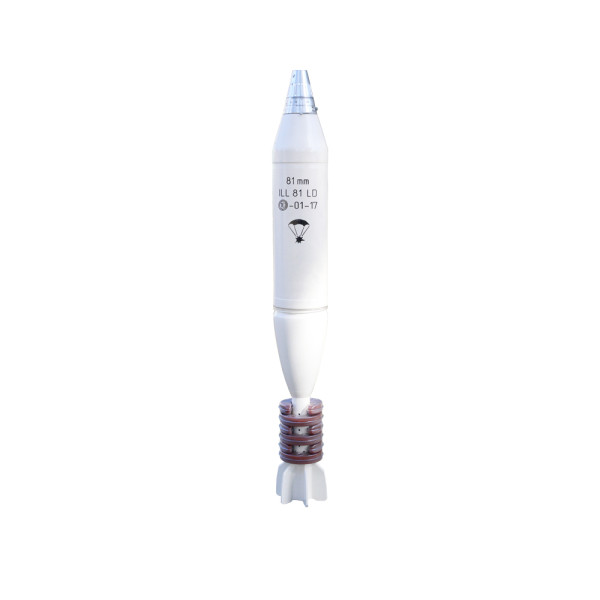

81 mm ILL 81LD and ILL 81

81 mm Illuminating Mortar Bombs ILL 81LD (with MTSQ DM 93Fuze)

ILL 81LD: NSN 1315-50-001-3281

81 mm Illuminating Mortar Bombs ILL 81 (with AF 612 Fuze)

ILL 81: NSN 1315-50-001-4188

The 81 mm Illuminating Mortar Bomb ILL 81LD and ILL 81 are intended for artificial illumination of the target area for the purposes of reconnaissance, firing, supporting the fire of anti-tank means and for execution of other tactical actions on the battlefield.

The payload of the bomb is a movable illuminating system consisting of a parachute system and an illuminating flare.After the ejection of the illuminating system over the target, flare descent is smooth and slow due to the parachute system, and its spiral motion provides maximum illuminating effect during the whole time of flare burning.

Overview

The Mortar Bomb ILL 81LD is fuzed with MTSQ DM 93 (Mechanical time and superquick) fuze.
This Mortar Bomb is fuzed with AF612 (Pyrotechnic time and super quick) fuze.

The 81 mm Illuminating Mortar Bomb ILL 81LD can be fired from the following 81 mm Mortars of NATO Standard – M81MA, M1, M29A1, M29, L16 A1/A2, M8-522, M081-61C, Tampella, ECIA IN, M8 Hirtenberger, etc.

When firing with Mortar M1 do not fire over Charge 4.
When firing with Mortar M29 do not fire over Charge 5.
Do not fire the ILL 81LD with Ignition Cartridge only.

BALLISTIC DATA	ILL 81LD	ILL 81
Average Maximum Pressure, bar (piezo)	900 (0+6)	900 (0+6)
Average Max Range, m
● 1 170 mm barrel	4 660(0+6)	4 660(0+6)
● 1 450 mm barrel	4 928 (0+6)	4 928 (0+6)
Average Muzzle velocity, m/s
● 1 170 mm barrel	296 (0+6)	296 (0+6)
● 1 450 mm barrel	312 (0+6)	312 (0+6)
Full variable Propellant Charge	from 1 to 6	from 1 to 4

BALLISTIC DATA

ILL 81LD

ILL 81

Average Maximum Pressure, bar (piezo)

900 (0+6)

Average Max Range, m

● 1 170 mm barrel

4 660(0+6)

● 1 450 mm barrel

4 928 (0+6)

Average Muzzle velocity, m/s

● 1 170 mm barrel

296 (0+6)

● 1 450 mm barrel

312 (0+6)

Full variable Propellant Charge

from 1 to 6

from 1 to 4

TECHNICAL CHARACTERISTICS	ILL 81LD	ILL 81
Body material	Aluminium alloys	Aluminium alloys
Length fuzed, mm	626 max	635
Weight fuzed, kg	4.010 max	3.850
Payload	Illuminating pyrotechnical composition with parachute	Illuminating pyrotechnical composition with parachute
Illumination power, cd	950 000	950 000
Average flare burning time, s	40	40
Height of burst, m	350	350
Highest Max Pressure, bar (piezo)	950 (0+6)	950 (0+6)
Fuze	MTSQ DM 93 (Mechanical Time Super Quick)	AF612 (Pyrotechnic Time Super Quick)
Operating Temperature Range, °C	from minus 40 to 50	from minus 40 to 50

TECHNICAL CHARACTERISTICS

ILL 81LD

ILL 81

Body material

Aluminium alloys

Length fuzed, mm

626 max

635

Weight fuzed, kg

4.010 max

3.850

Payload

Illuminating pyrotechnical composition with parachute

Illumination power, cd

950 000

Average flare burning time, s

Height of burst, m

350

Highest Max Pressure, bar (piezo)

950 (0+6)

Fuze

MTSQ DM 93 (Mechanical Time Super Quick)

AF612 (Pyrotechnic Time Super Quick)

Operating Temperature Range, °C

from minus 40 to 50

Packing	ILL 81LD	ILL 81
Type	One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container;6 pcs. Containers are arranged in a wooden case	One fuzed Mortar Bomb with 6 pcs. Increment Charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm	755x353x275	755x353x275
Wooden case weight, kg	42	39
Wooden case volume, m³	0.073	0.073
CLASS OF EXPLOSION HAZARD	1.2G; UN 0171	1.2G, UN 0171

Packing

ILL 81LD

ILL 81

Type

One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container;6 pcs. Containers are arranged in a wooden case

One fuzed Mortar Bomb with 6 pcs. Increment Charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.

Wooden case dimensions, mm

755x353x275

Wooden case weight, kg

Wooden case volume, m³

0.073

CLASS OF EXPLOSION HAZARD

1.2G; UN 0171

1.2G, UN 0171
