73 mm RHEAT-9MA2

73 mm RHEAT-9MA2

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

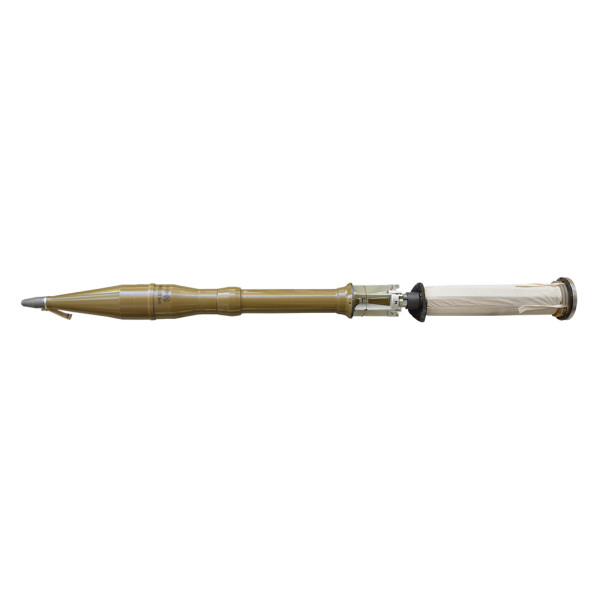

73 mm Round RHEAT-9MA2 with Anti-Tank Grenade GHEAT-9MA2

NSN:1310-50-001-1628

Improved, modernized version of Anti-Tank Rounds for SPG-9

Main Features:

The 73 mm Round RHEAT-9MA2 is designed for destroying tanks, self-propelled guns and other armoured vehicles. It can be used for destroying manpower of the enemy in hasty field, shelters and brick-wall fortifications.

Packing
6 Rounds are packed in a wooden case as follows
6 Grenades GHEAT-9MA2 (each one in airtight plastic bag) and
6 Propellant Charges (each one in a plastic containers)
TECHNICAL CHARACTERISTICS
Caliber, mm73
Armour penetration, mm300
Max firing range, m1 300
Direct firing range, m800
Weight of the round, kg4.385
Weight of the grenade, kg2.615
Muzzle velocity, m/s435
Operational temperature range, °Cfrom minus 40 to 50
The Round consists
FuzePiezoelectri AF91 / AF74
High-Explosive Anti-Tank GrenadeGHEAT-9MA2
Sustainer MotorSM-92 / SM-91
Propellant ChargeCP-91
Weapon Systems
All 73 mm ARSENAL ATGL-H and Russian SPG-9 Anti-Tank Grenade Launchers
Wooden case
Dimensions, mm1 065x525x305
Weight, kg60
Volume, m30.17
