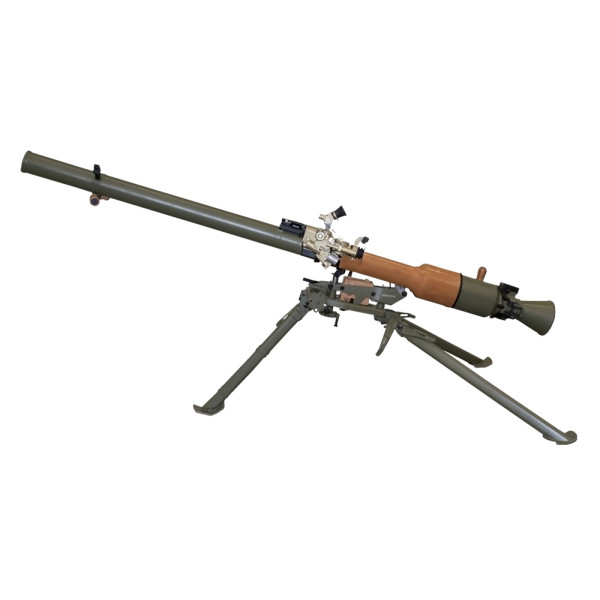

73 mm ARSENAL Heavy Anti-Tank Grenade Launchers ATGL-H Family

ATGL-H - NSN: 1010-50-001-1181

ATGL-H1 - NSN: 1010-50-001-1180

ATGL-H2 - NSN: 1010-50-000-0294

ATGL-H3 - NSN: 1010-50-001-1759

Overview

ATGL-H, ATGL-H1, ATGL-H2 and ATGL-H3 are mighty reliable recoilless fire weapons for destroying tanks, self-propelled artillery mounts and other armoured vehicles, as well as for destroying the enemy `s manpower.

ACCESSORIES	ATGL-H	ATGL-H1	ATGL-H2	ATGL-H3
Optical sight PGOK-9 or SGL-9MA, pc.	1	1	1	1
Night sight NOS-4B or PGN-9, pc.	-	-	1	1
Wheelset, pc.	-	1	-	1
Bag for rounds, pc.	2	2	2
Set of front and rear canvas covers, pc.	1	1	1	1
Canvas gloves, pair	1	1	1	1
Bag with set of spare parts and accessories, pc.	1	1	1	1
Brush, pc.	1	1	1	1
Cleaning rod, pc	1	1	1	1

Packing Wooden case with 1 weapon and accessories	ATGL-H	ATGL-H1	ATGL-H2	ATGL-H3
Case dimensions, mm	2167x486x671	2167x486x671	2167x486x671	2167x486x671
Gross weight of case, kg	130	145	140	155
Volume of case, m³	0.7	0.7	0.7	0.7

Specifications	ATGL-H	ATGL-H1	ATGL-H2	ATGL-H3
Calibre, mm	73	73	73	73
Ammunition	RHEAT-9MA, RHEAT-9MA2, PG-9V, PG-9VN, RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM, RTB-9MA, etc.	RHEAT-9MA, RHEAT-9MA2, PG-9V, PG-9VN, RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM, RTB-9MA, etc.	RHEAT-9MA, RHEAT-9MA2, PG-9V, PG-9VN, RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM, RTB-9MA, etc.	RHEAT-9MA, RHEAT-9MA2, PG-9V, PG-9VN, RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM, RTB-9MA, etc.
Equipment	body with telescopic tripod	body with telescopic tripod and wheelset	body with telescopic tripod	body with telescopic tripod and wheelset
Sighting Devices	Optical Sight PGOK-9 or SGL-9MA	Optical Sight PGOK-9 or SGL-9MA	Optical Sight PGOK-9 or SGL-9MA and Night Sight NOS-4B or PGN-9	Optical Sight PGOK-9 or SGL-9MA and Night Sight NOS-4B or PGN-9
Weight, kg	50.5	66.5	59	75
Length of launcher, mm	2110	2110	2110	2110
Height of launcher, mm with optical sight	840	920	840	920
Height of launcher, mm with wheelset in traveling position	-	740	-	740
Max width on tripod, mm	1050	1050	1050	1050
Max width on wheelset in traveling position, mm	-	665	-	665
Muzzle velocity, m/s
● RHEAT-9MA, PG-9V and PG-9VN	435	435	435	435
● RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM	316	316	316	316
Rate of fire, rounds/min	6	6	6	6
Direct fire range, m
● RHEAT-9MA, PG-9V and PG-9VN	800	800	800	800
● RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM	345	345	345	345
Max range of fire, m
● RHEAT-9MA, PG-9V and PG-9VN	1300	1300	1300	1300
● RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM	4500	4500	4500	4500
Max angle of elevation, degrees	25	25	25	25
System life, rounds	500	500	500	500
