73 mm RHEF-9MA

73 mm RHEF-9MA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

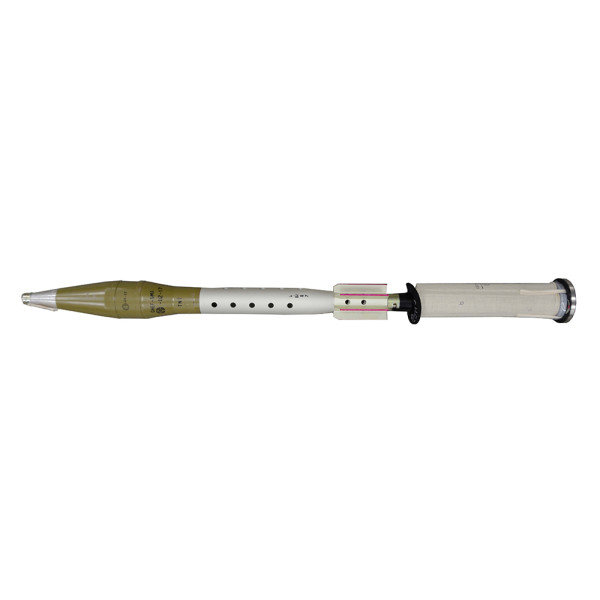

73 mm Round RHEF-9MA with High-Explosive Fragmentation Anti-Personnel Grenade GHEF-9MA

NSN:1310-50-001-1627

Improved, modernized version of High-Explosive Anti-Personnel Rounds for SPG-9

The 73 mm Round RHEF-9MA is a powerful ammunition designed for destroying enemy troops and fire means in the open, in trenches, in hasty field shelters or brick-wall fortifications, light armoured vehicles and the infantry.

Overview



Main Features:

  • high accuracy, low dispersion and huge destructive power;
  • point-detonating fuze AF71 with super-quick and graze (anti-ricochet) function, independent of impact angle;
  • high-explosive or high-explosive incendiary action (at the customer's request).
Packing
6 Rounds are packed in a wooden case as follows
6 Grenades GHEF-9MA (each one in airtight plastic bag) and
6 Propellant Charges (each one in a plastic containers)
TECHNICAL CHARACTERISTICS
RHEF-9MA
Caliber, mm73
Max firing range, m4 500
Weight of the round, kg5.48
Weight of the grenade, kg3.68
Muzzle velocity, m/s316
Fire rate, shots/minup to 6
Bursting charge, typeTNT
Bursting charge weight, kg0.655
Operational temperature range, °Cfrom minus 40 to 50
The Round consists
FuzeAF71
High-explosive Fragmentation GrenadeGHEF-9MA
Propellant ChargeCP-92
Weapon Systems
All 73 mm ARSENAL ATGL-H and Russian SPG-9 Anti-Tank Grenade Launchers
Wooden case
Dimensions, mm1 065x525x305
Weight, kg64
Volume, m30.17
