73 mm RHEF-9MA1

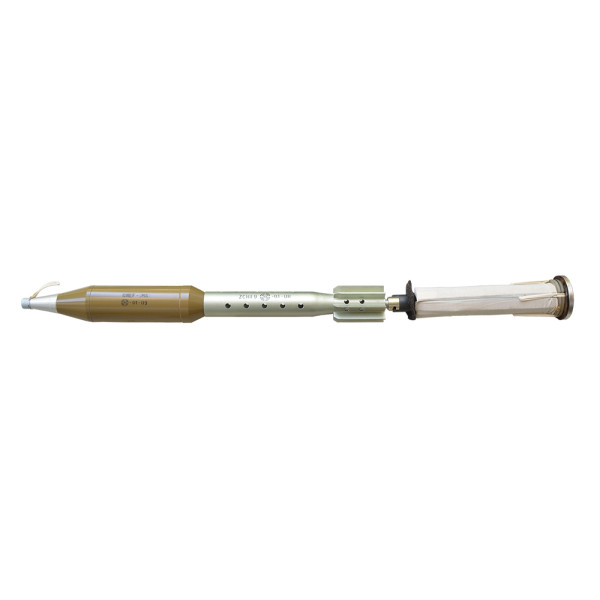

73 mm Round RHEF-9MA1 with High-Explosive Fragmentation Anti-Personnel Grenade GHEF-9MA1

NSN:1310-50-001-1626

Improved, modernized version of
High-Explosive Fragmentation Anti-Personnel Rounds for SPG-9

The 73 mm Rounds RHEF-9MA1 is a powerful ammunition designed for destroying enemy troops and fire means in the open, in trenches, in hasty field shelters or brick-wall fortifications, light armoured vehicles and the infantry.

Main Features:

the Grenade body with pre-fragmented elements. This innovation vigorously improves several times the destructive power and effectiveness of the Round upon impact;

increased fragmentation: over than 1000 fragments, in weight 1.0...2.0 g;

point-detonating fuze AF77 with super-quick and graze (anti-ricochet) function, independent of impact angle.

high-explosive action

Packing 6 Rounds are packed in a wooden case as follows
6 Grenades GHEF-9MA 1 (each one in airtight plastic bag) and
6 Propellant Charges (each one in a plastic containers)

Packing

6 Rounds are packed in a wooden case as follows

6 Grenades GHEF-9MA 1 (each one in airtight plastic bag) and

6 Propellant Charges (each one in a plastic containers)

TECHNICAL CHARACTERISTICS
Caliber, mm	73
Max firing range, m	4 500
Weight of the round, kg	5.48
Weight of the grenade, kg	3.68
Muzzle velocity, m/s	316
Fire rate, shots/min	up to 6
Bursting charge, type	RDX (A-IX-1)
Weight of explosive filling, kg	0.75
Fragmentation-prefabricated lethal fragments in weight 1.0...2.0 g, pcs	over 1 000
Operational temperature range, °C	from minus 40 to 50
The Round consists
Fuze	AF77
High-explosive Fragmentation Grenade	GHEF-9MA1
Propellant Charge	CP-92

TECHNICAL CHARACTERISTICS

Caliber, mm

Max firing range, m

4 500

Weight of the round, kg

5.48

Weight of the grenade, kg

3.68

Muzzle velocity, m/s

316

Fire rate, shots/min

up to 6

Bursting charge, type

RDX (A-IX-1)

Weight of explosive filling, kg

0.75

Fragmentation-prefabricated lethal fragments in weight 1.0...2.0 g, pcs

over 1 000

Operational temperature range, °C

from minus 40 to 50

The Round consists

Fuze

AF77

High-explosive Fragmentation Grenade

GHEF-9MA1

Propellant Charge

CP-92
