40/60 mm RILL-7MA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

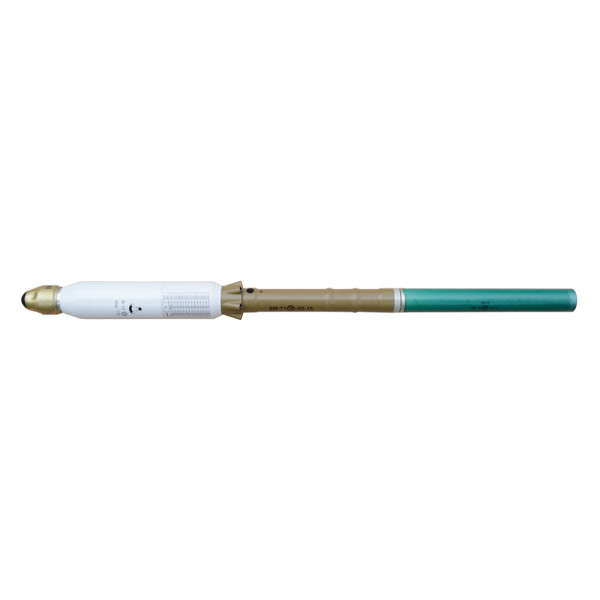

40/60 mm Round RILL-7MA with Illuminating Grenade GILL-7MA

NSN:1310-50-001-4410

The 40/60 mm Round RILL-7MA with illuminating Grenade GILL-7MA is intended for:

Illumination of the target area during night combat operations - for the purposes of reconnaissance and surveillance;
Pointing the target;
Provision of the firing with Anti-tank Guided Rocket System and direct firing Gun;
Blinding of electronic optical and firing means of the enemy positioned in the surveillance posts and for execution of other tactical actions on the battlefield.
The Round consists of illuminating Grenade GILL-7MA and Propellant Charge CP-713.
The Grenade consists of Front illuminating part ILL-7MA, Sustainer motor SM-71 and AF612/MTSQ DM93-2(Pyrotechnic time-and superquick fuze).

Packing 6 Rounds are packed in a wooden case as follows
6 Grenades GILL-7MA (each one in airtight plastic bag)
6 Propellant Charges CP-713 (each one in a plastic container; each 3 pcs. plastic containers in an airtight plastic bag).

TECHNICAL CHARACTERISTICS	RILL-7MA
Caliber, mm	40
Warhead calibre, mm	60
Weight of Round, kg	3.200 max
Weight of Grenade GILL-7MA, kg	2.700 max
Maximum range, m	1 700
Muzzle velocity, m/s	100
Height of flare ejection, m	250
Flare light intensity, cd	350 000
Burning time of flare, s	35
Rate of illuminating system descent, m/s	4-5
Operation temperature range, °C	from minus 40 to 50
CLASS OF EXPLOSION HAZARD	1.2G, UN 0171

Weapon Systems
40 mm ARSENAL ATGL-L2 and Russian RPG-7V Light Anti-Tank Grenade Launchers.
