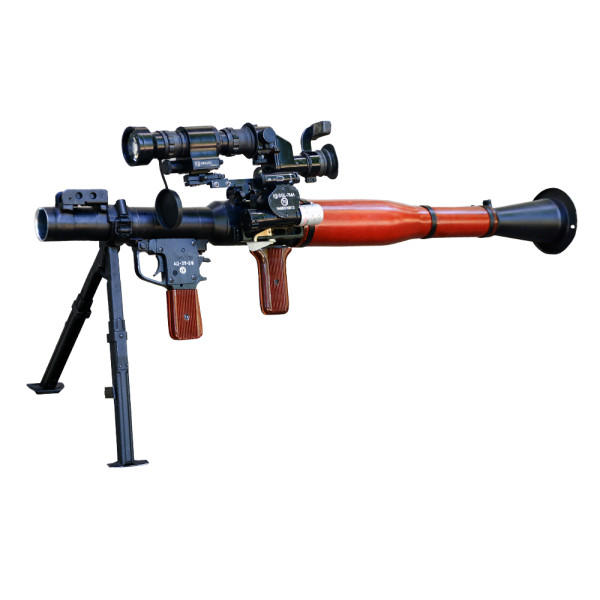

40 mm ARSENAL Light Anti-Tank Grenade Launchers ATGL-L Family

ATGL-L1 - NSN: 1010-50-001-1179

ATGL-L2 - NSN: 1010-50-001-1945

ATGL-L3 - NSN: 1010-50-001-1743

ATGL-L4 - NSN: 1010-50-001-1944

ATGL-L5 - NSN: 1010-50-001-1943

Overview

The ATGL-L family are mighty reliable recoilless weapons for destroying tanks, self-propelled artillery units and other armoured vehicles of the enemy, as well as the enemy ‘s manpower in open and in armoured shelters.

Packing WOODEN CASE WITH 9 WEAPONS	ATGL-L1	ATGL-L2	ATGL-L3	ATGL-L4	ATGL-L5
Weight, kg	102	103	102	105	102
Dimensions, mm	1240x640x440
Volume, m³	0.349	0.349	0.349	0.349	0.349
WOODEN CASE WITH INDIVIDUAL SPTA SET
Weight, kg	62	62	62	62	62
Dimensions, mm	1520x630x400
Volume, m³	0.38	0.38	0.38	0.38	0.38
WOODEN CASE WITH 36 OPTICAL SIGHTS
Weight, kg	58	68	-	-	-
Dimensions, mm	1020x640x325	-
Volume, m³	0.212	0.212	-	-	-
WOODEN CASE WITH 9 & 9 OPTICAL SIGHTS & NIGHT ADJUSTMENTS
Weight, kg	-	-	-	-	73
Dimensions, mm	-	-	-	-	1240x640x440
Volume, m³	-	-	-	-	0.35

Specifications	ATGL-L1	ATGL-L2	ATGL-L3	ATGL-L4	ATGL-L5
Calibre, mm	40	40	40	40	40
Ammunition	RHEAT-7MA2, RHEAT-7MA6 RHEAT-7MAL, PG-7V, PG-7VM, PG-7VL, PG-7VR	RHEAT-7MA2, RHEAT-7MA6, RHEAT-7MAL, OGi-7MA, RHEF-7MA, RHEF-7LDMA, RTB-7MA, RTB-7LDMA, RILL-7MA, RINC-7MA, RSMK-7MA, PG-7V, PG-7VM, PG-7VL PG-7VR KO-7V, GTB-7VS, OFG-7V, OG-7V, OG-7VM	RHEAT-7MA2, RHEAT-7MA6, RHEAT-7MAL, PG-7V, PG-7VM	RHEAT-7MA2, OGI-7MA, RHEF-7MA, PG-7V, PG-7VM, OG-7V, OG-7VM	RHEAT-7MA2, RHEAT-7MA6, RHEAT-7MAL, OGi-7MA, RHEF-7MA, RHEF-7LDMA, RTB-7MA, RTB-7LDMA, RILL-7MA, RINC-7MA, RSMK-7MA, PG-7V, PG-7VM, PG-7VL PG-7VR, KO-7V, GTB-7VS, OFG-7V, OG-7V, OG-7VM
Additional Sighting Devices	SGL-7A, SGL-7AO Optical sight	SGL-7MA SGL-7MAO Optical Sights with elevating mechanism	MP-1 Sighting attachment for HE grenades	SGL-7MA & MNV-50 Optical Sight with elevating mechanism and Night Adjustment
Firing distance, m -wtih SGL-7MA/SGL-7MAO	from 100 to 2000 m	from 100 to 2000 m	from 100 to 2000 m	from 100 to 2000 m	from 100 to 2000 m
Length, mm	950	950	950	950	950
Weight of the grenade launcher with sighting device, kg	6.5	6.98	5.9	6.15	7.61
Angle of elevation, degrees	-	up to 30	-	up to 30	up to 30
Firing rate, rounds/min	4 ... 6	4 ... 6	4 ... 6	4 ... 6	4 ... 6
Portable combat set, rounds	5	5	5	5	5
System life, rounds	500	500	500	500	500
((System life: 500 shots * The System life can be extended to 1000 shots (totally) after replacement of the Nozzle.))
EXTRA (Paid Separately)	The grenade launchers can be equipped with collapsible bipod
Distance between barrel bore axis and ground, mm
weapon on bipod with extended legs	295 ... 420	295 ... 420	295 ... 420	295 ... 420	295 ... 420
weapon on bipod with gathered and locked legs	465	465	465	465	465
Max. bipod width, mm
at min height	320	320	320	320	320
at max height	450	450	450	450	450
with gathered and locked legs	125	125	125	125	125
Weight of bipod, kg	0.750	0.750	0.750	0.750	0.750

TOOLS and ACCESSORIES	ATGL-L1	ATGL-L2	ATGL-L3	ATGL-L4	ATGL-L5
Optical sight, pc.	1	1	-	-	1
Night Vision Attachment, set, pc.	-	-	-	-	1
Sighting Attachment MP-1, pc.	-	-	-	1	-
Sling, pcs.	1	1	1	1	1
Cleaning rod, pcs.	1	1	1	1	1
Rod with washer, pcs.	1	1	1	1	1
Belt with cover, pc.	1	1	1	1	1
Bag for 3 rounds, pc.	1	1	1	1	1
Bag for 2 rounds, pc.	1	1	1	1	1
Device for assembling and disassembling of firing mechanism, pcs.	1	1	1	1	1
Key-screwdriver, pcs.	1	1	1	1	1
Drift, pcs.	1	1	1	1	1
Box with repair SPTA set for 9 weapons, pcs.	1/9	1/9	1/9	1/9	1/9
Spare parts
Striker, pcs.	2	2	2	2	2
Striker spring, pcs.	2	2	2	2	2
Nipple, pcs.	1	1	1	1	1
Bushing, pcs.	2	2	2	2	2
Pouch for above mentioned details, pcs.	1	1	1	1	1
