40/65 mm RHEF-7LDMA

40/65 mm RHEF-7LDMA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

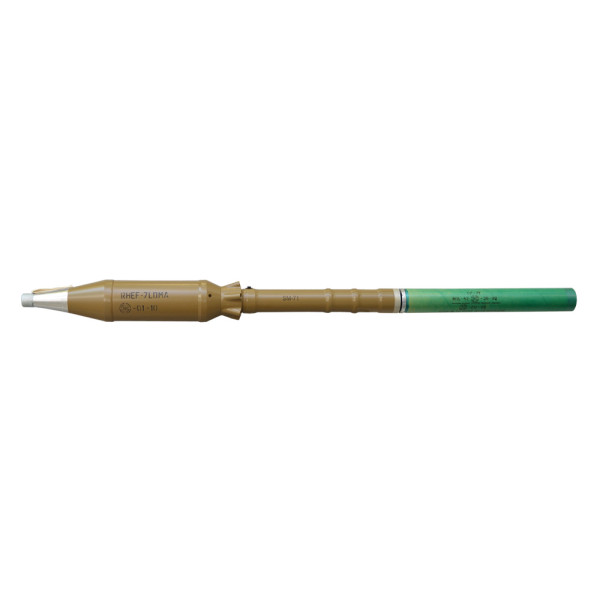

40/65 mm Round RHEF-7LDMA with High-Explosive Fragmentation Long Distance Anti-Personnel Grenade GHEF-7LDMA

NSN:1310-50-001-1672

Improved, modernized version of High-Explosive Fragmentation
Anti-Personnel Rounds for RPG-7V

Main Features:

The 40/65 mm Round RHEF-7LDMA with High-Explosive Fragmentation Long Distance Grenade GHEF-7LDMA is designed for destroying enemy troops and fire means in the open, in trenches, in hasty field shelters or brick-wall fortifications, as well as against hostile unarmoured motorized vehicles and the infantry.

The Round consists of High-Explosive Grenade GHEF-7LDMA and Propellant Charge CP-77.

The Grenade is completed with a warhead consisting of pre-fragmented steel body and bursting charge of powerful explosive mixture of high-explosive or high-explosive incendiary action (at the customer's request); Sustainer Motor SM-71 and point-detonating fuze AF72 with super-quick and graze (anti-ricochet) function, independent of impact angle.

Packing
6 Rounds are packed in a wooden case as follows
6 Grenades  GHEF-7LDMA (each one in airtight plastic bag)
6 Propellant Charges CP-77 (each one in a plastic container; each 3 pcs. plastic containers in an airtight plastic bag)
TECHNICAL CHARACTERISTICS
RHEF-7LDMA
Caliber, mm40
Warhead caliber, mm         65
Maximum fire range, m2 000
Direct fire range, m250
Weight of the round, kg3.190 max
Weight of the grenade, kg2.710 max
Muzzle velocity, m/s100
Type of the explosive chargeA-IX-1 (RDX)/TNT
Weight of the explosive charge, kg0.600 max
Fragmentation-prefabricated lethal fragments in weight 1.0...2.0 g, pcsover 400
Fire rate, shots/min4÷6
Operational temperature range, °Cfrom minus 40 to 50
The Round consists
Fuze typePoint-detonating fuze AF72 with super-quick and graze (anti-ricochet) function, independent of impact angle
CLASS OF EXPLOSION HAZARD1.1F, UN 0292
Weapon Systems
ARSENAL ATGL-L2 and Russian RPG-7V Light Anti-Tank Grenade Launchers.
Wooden case
Dimensions, mm895x481x275
Max gross weight, kg40
Volume, m30.118
