40/90 mm RHEAT-7MA6

40/90 mm RHEAT-7MA6

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

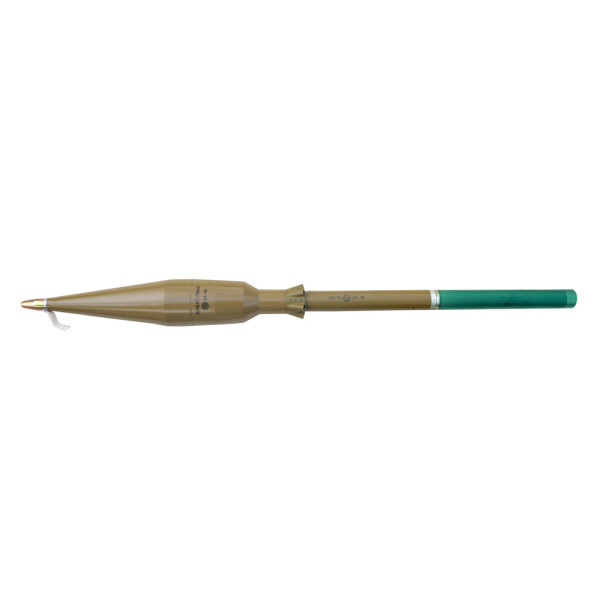

40/90 mm Round RHEAT-7MA6 with Anti-Tank Grenade GHEAT-7MA6

NSN: 1310-50-001-5629

Improved, modernized version of Anti-Tank Rounds for RPG-7V

Overview

The 40/90 mm Round RHEAT-7MA6 with Anti-tank Grenade GHEAT-7MA6 is designed for destroying tanks, armoured and non-armoured vehicles. It can also be used against enemy troops and weapon emplacements in trenches, field shelters, reinforced buildings, blindages and stone-, brick- or concrete-wall fortifications.

Performance :

Packing
6 Rounds are packed in a wooden case as follows
6 Grenades GHEAT-7MA6 (each one packed in airtight plastic bag) are arranged in two layers in the wooden case, and
6 Propellant Charges CP-78 (each one packed in a plastic container, every 3 pcs. of plastic containers are packed in an airtight plastic bag).
TECHNICAL CHARACTERISTICS
RHEAT-7MA6
Caliber, mm40
Warhead caliber, mm90
Armour penetration, mm, not less than500
Max sighting range, m300
Max firing distance, m, not less than500
Direct-fire range at 2m high target, m250
Weight of the round, kg2.800 max
Weight of the grenade, kg2.400
Average muzzle velocity, m/s106±3
Fire rate, shots/min 4÷6
Operational temperature range, °Cfrom minus 40 to 50
Fuze typePiezoelectric AF79
Fuze azming distance, mfrom 6 to 20
Weapon Systems
All 40 mm ARSENAL ATGL-L Family and Russian RPG-7V Light Anti-Tank Grenade Launchers.
Wooden case
Dimensions, mm895x481x325
Weight, kg42
Volume, m30.14
CLASS OF EXPLOSION HAZARD1.1E, UN 0181
