23x152 mm ROUNDS FOR AIR DEFENCE SYSTEMS ADS, ADS-N, ZU-23-2, ZU-23-2F AND ZSU-23-4

FAPDS-T

FAPDS-T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

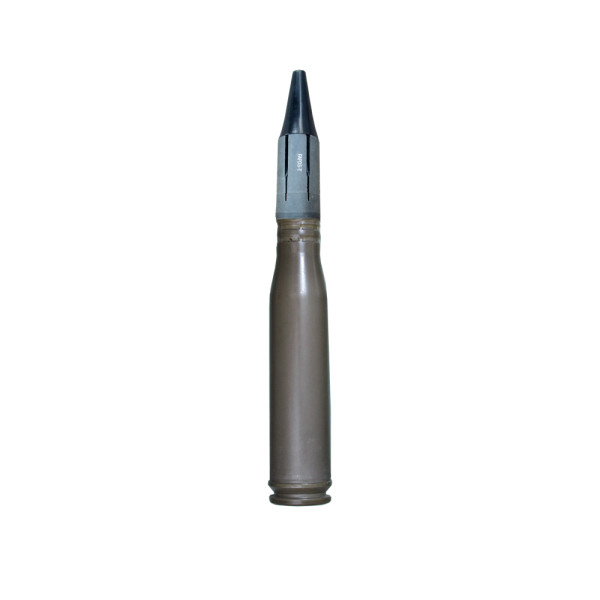

23x152 mm Round FAPDS-T Frangible Armour Piercing Discarding Sabot with Tracer
NSN:1305-50-000-5645

Overview

The Rounds are compatible with 23 mm ADS, ADS-N,  ZU-23-2, ZU-23-2F and ZSU-23-4
and intended to defeat air targets, ground unarmored and light armored vehicles and manpower.

Packing
28 Rounds in one airtight metal box, three metal boxes ( 84 pcs. totally ) in a wooden case
Wooden case dimensions, mm875x398x206
Gross weight, kg51
Volume, m30.072
Specifications
Caliber23x152
Projectile typeFrangible Armour Piercing Discarding Sabot with Tracer
Round length, mm236 max
Round weight, g410 approx.
Projectile weight, g143 approx.
PrimerKV No3
Tracer burning time, s, not less than2.1
Average muzzle velocity, V0aver, m/s1100±20
Average max Pressure at 15oC, Pmaxaver, MPanot more than 284
Penetration of the armour plate, at angle 45° NATO: (armour plate: RHA-ARMOX 370S)- at distance 200 m-30 mm - at distance 1 000 m-28 mm - at distance 2 000 m-21 mm
Propellant typeNC single base
Case materialSteel
 CLASS OF EXPLOSION HAZARD1.2C; UN 0328
Operational temperature range, °Cfrom minus 50 to 50
