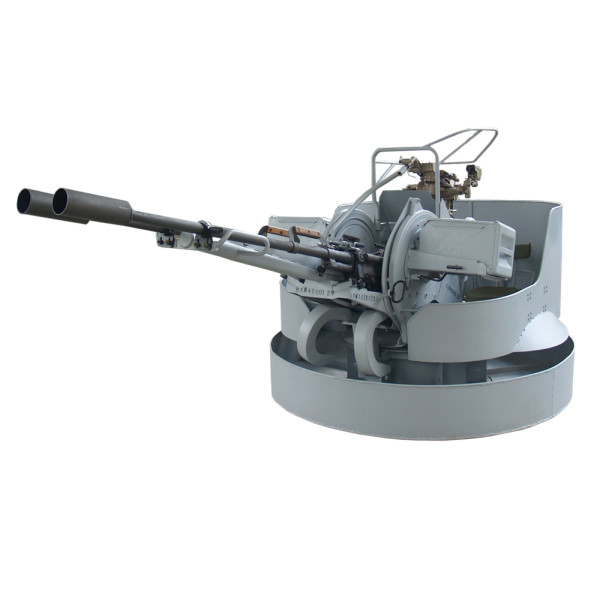

23x152 mm  Air Defence System ADS-N (for Navy)

NSN : 1005-50-000-7416

ADS-N is a powerful weapons, intended for destruction of air targets within the range of 2500 m at height 1500 m, light armored sea targets and shore firing points within the range of 2000 m, as well as for destruction of enemy manpower at open or behind the light shelters.

Main Features:

  • The 23 mm Air-Defence System possess high tactical characteristics necessary for fighting against targets of opportunity and highspeed targets.

  • ADS-N is equipped with Anti-Aircraft Automatic Sight ZAP-23 and Optical Ground Sight T-3.

  • The System uses 23x152 mm HEI-T, HEI, API-T and FAPDS-T rounds.

  • Weapon feeding is performed by 50 round metal linked belt placed in a metal ammunition box.

  • Attachment of ADS-N to the deck is performed by 16 sets of bolts, nuts, thickening washers and spring washers, as the length of the bolts is according to the thickness of the deck.

  • Near the System, at place suitable for gunner operation and not disturbing the System functioning, 2 pcs of cabinets for keeping the ammunition boxes (for left and right hand feeding) and bath for Barrel cooling are mounted.

  • For the proper operation of the System a crew of 5 persons is needed.

ACCESSORIES
ADS-N
2 pcs spare barrels
Sights: ZAP-23 , T-3 and KV-L collimator
14 pcs ammunition boxes
Barrel cooling basin
SPTA set
Overall protection cover
2 pcs covers for the flush hiders
Cover for the sight
2 pcs ammunition preservation cases with 6 pcs. boxes each.
Packing
Case for two barrels and one gun, pcs
Case dimensions, mm213 5x 385 x 336
Case gross weight, kg150
Ammunition preservation case with 6 pcs. boxes each2
Case dimensions, mm1000 x 620 x 620
Case gross weight, kg150
Case for barrel cooling basin, pc1
Case dimensions, mm2360 x 510 x 255
Case gross weight, kg50
Case with 630 belt links, pc1
Case dimensions, mm1126 x 310 x 342
Case gross weight, kg55
Case for SPTA set, pc1
Case dimensions, mm802 x 490 x 275
Case gross weight, kg50
Weight of the mount with cover on the palette, kg730
Palette dimensions, mm3100 x 2000 x 1800
Specifications
ADS-N
Number x calibre of automatic guns, mm2 x 23
Ammunition, mm23 x 152
Rate of fire, rounds/minfrom 1600 to 2000
Muzzle velocity of projectile, m/s970
Effective range, m
● Traverse2000
● Elevation1500
● Slant2500
Combat ammunition load, pcs100
Aiming speed, deg/s
● Traverse30/60
● Elevation40
Engagement section, degrees
● Horizontal360
● Verticalfrom -10 to +90
Overall dimensions in combat position, mm
● Length3700
● Height1650
● Width1900
Weight of the system with covers, loaded ammunition boxes and SPTA set, kg880
