Barrel length, mm
215/215

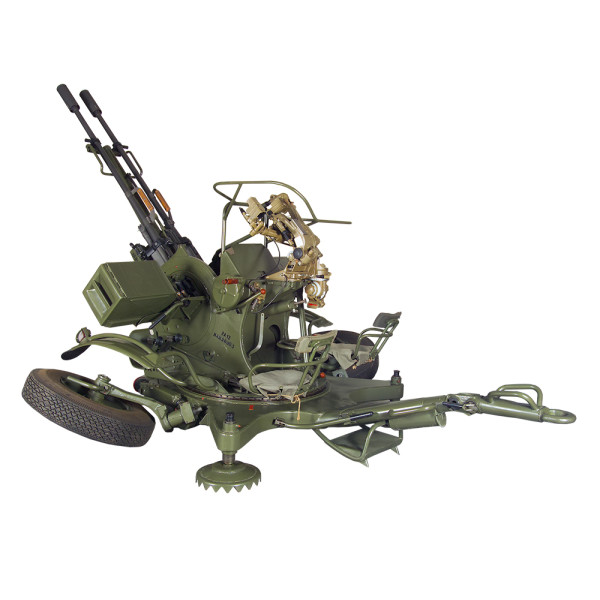

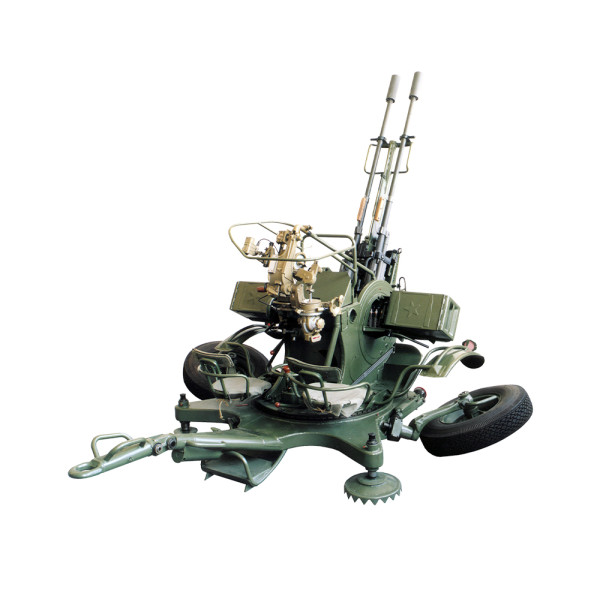

23x152 mm ARSENAL Air Defence System ADS (for Land Forces)
NSN: 1005-50-000-0299
Overview
ADS is a powerful weapons, intended for destruction of air targets within the range of 2500 m at height 1500 m, light armored sea targets and shore firing points within the range of 2000 m, as well as for destruction of enemy manpower at open or behind the light shelters.
Main Features:
- The 23 mm ADS possess high tactical characteristics necessary for fighting against targets of opportunity and high speed targets.
- ADS is equipped with Anti-Aircraft Automatic Sight ZAP-23, Optical Ground Sight T-3 and KV-L collimator.
- The System uses 23x152 mm HEI, HET, HEI-T, AP-T, API-T and RAPIT-C rounds.
- Weapon feeding is performed by 50 round metal linked belt placed in a metal ammunition box.
|
|---|
| ADS |
| 2 pcs spare barrels |
| Sights: ZAP-23, T-3 and KV-L collimator |
| 10 pcs ammunition boxes |
| Barrel cooling basin |
| SPTA set |
| Overall protection cover |
| 2 pcs covers for the flush hiders |
| Cover for the sight |
Packing Mount with 2 ammo boxes, sight, tools and accessories, covered with canvas cover |
|---|
| Dimensions, mm | 2870x2800/1940x2300/1700 |
| Weight, kg | 770 |
| Wooden case for SPTА set, pc | 1 |
| Wooden case dimensions, mm | 802 x 490 x 275 |
| Wooden case gross weight, kg | 50 |
| Wooden case with Cannon (left) and two barrels, pc | 1 |
| Wooden case dimensions, mm | 2 135 x 385 x 336 |
| Wooden case gross weight, kg | 150 |
| Wooden case with Cannon (right) and two barrels, pc | 1 |
| Wooden case dimensions, mm | 2 135 x 385 x 336 |
| Wooden case gross weight, kg | 150 |
| Wooden case with 8 pcs. ammunition boxes, mm | 1 |
| Wooden case dimensions, mm | 1240x660x620 |
| Wooden case gross weight, kg | 133 |
| Wooden case with barrel cooling basin, pc | 770 |
| Wooden case dimensions, mm | 2360x510x255 |
| Wooden case gross weight, kg | 50 |
| Wooden case with 630 links, pc | 1 |
| Wooden case dimensions, mm | 1 126 x 310 x 342 |
| Wooden case gross weight, kg | 55 |
| ADS |
|---|
| Number x calibre of automatic guns, mm | 2 x 23 |
| Ammunition, mm | 23 x 152 | | | | |
| Rate of fire, rounds/min | from 1600 to 2000 | |
| Muzzle velocity of projectile, m/s | 970 | | |
Effective range, m |
| ● Traverse | 2000 |
| ● Elevation | 1500 |
| ● Slant | 2500 |
| Combat ammunition load, pcs | 100 |
Aiming speed, deg/s |
| ● Traverse | 30/60 |
| ● Elevation | 40 |
Engagement section, degrees |
| ● Horizontal | 360 |
| ● Vertical | from -10 to +90 |
| Overall dimensions in combat position, mm length, in combat/marching/transport position | 4570/3400/2870 (without cannon) |
Overall dimensions in combat position, mm |
| ● Height, in combat/marching/transport position | 1330/1700/2300 (without cannon) |
| ● Width, in combat/marching position | 2880/1940 |
| Weight of the system with covers, loaded ammunition boxes and SPTA set, kg | 960 |
