40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.

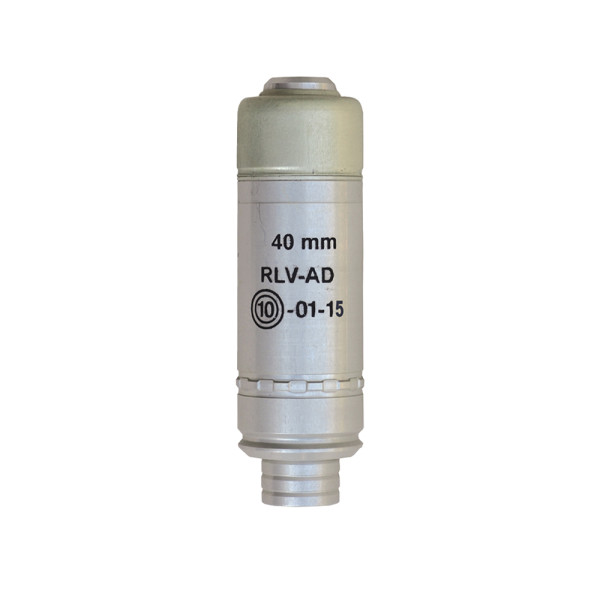

40 mm RLV-AD

40 mm RLV-AD

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

40 mm Round RLV-AD with Anti-Diver Grenade

NSN: 1310-50-001-2471

The RLV-AD is an in-water operation round and is used for protection of ships and harbors against enemy frogmens.
The blast from the highly explosive composition creates a defeat effect within a 30 m radius and shock disorientation up to 100 m.

Overview

The Rounds are compatible with:

- ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.; and on AK-74, AKS-74, AKM, AKMS, AK 101, AK 103

Packing
3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. totally)
Wooden case dimensions, mm875x398x206
Wooden case weight, kg40
Wooden case volume, m30.072
Class of explosion hazard, UN Code1.1E, UN 0006
Specifications
RLV-AD
TypeLow Velocity, Anti-diver
Calibre, mm40
Overall length of Round, mm134 max
Weight of round, kg0.270 max
Explosive fillingTBC-3 (thermobaric composition)
Cartridge case materialaluminum alloy
Fuze typeAF44 – point detonating fuze with delay action, distant arming and self-destruction
Arming distance, mfrom 10 to 40
Self-destruction time, s27 max
Max firing range, m400
Muzzle velocity, m/s76
Detonating depth of fuze, mfrom 5 to 15
Radius of defeat, mabout 30
Radius of shock effect, mabout 100
Operational temperature, °Cfrom minus 50 to 50
