40 mm UBGL-1

40 mm UBGL-1
40 mm UBGL-1

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

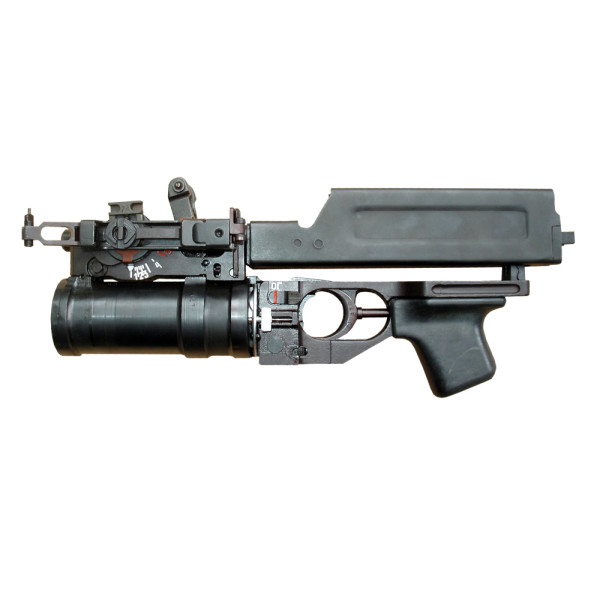

40 mm ARSENAL Underbarrel Grenade Launcher UBGL-1

NSN: 1010-50-001-0264

Overview

The 40 mm ARSENAL Underbarrel Grenade Launcher UBGL-1 is a single shot launcher, intended for use with assault rifles, for destruction of single or group targets of enemy’s manpower in an open area, in trenches and light shelters of field type, as well as reverse slopes.

Main Features:

  • Add-on launcher;
  • Flat or curved trajectory fire;
  • Muzzle loading;
  • Ammunition - rounds of case-less type.
ACCESSORIES
Receiver Cover latch unit1
Butt plate with sling1
Bag for launcher1
Bag for 10 grenades1
Brush1
Set of group SPTA for 18 launchers1
Packing
Quantity of the weapons in one wooden case, pcs.18
Gross weight, kg100
Case dimensions, mm1270x572x387
Volume, m30.28
Specifications
UBGL-1

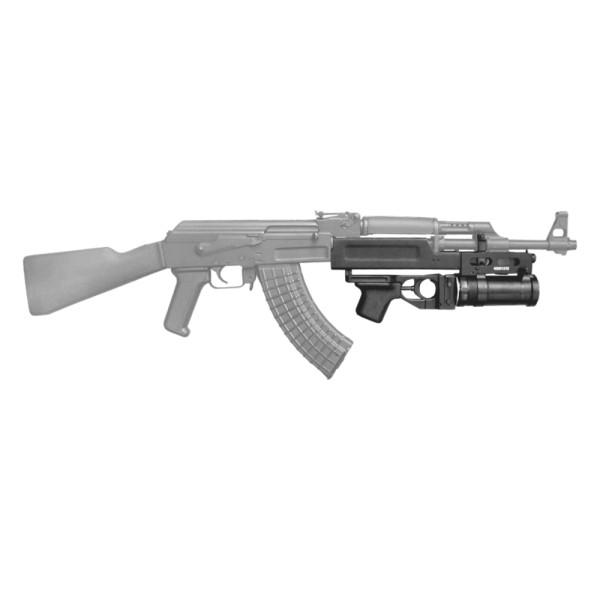

Suitable for attaching toAK-47, AKS-47 and ARSENAL AR, AR-F AR-1, AR-1F, AR-M2F, AR-M8FB, AR-M52TB, etc. (by means of adapter)
Calibre, mm40
Ammunition40 mm Rounds, manufactured by ARSENAL: RLV-HEF, RLV-HEFJ, RLV-TB, RLV-AD, RLV-P, RLV-ILL-WS, RLV-SMK, RLV-S&F, RLV-CS, etc. and all caseless rounds for GP-25
Maximum range, mmUp to 400
Effective range at area targets, mUp to 350
Effective range at point targets, mUp to 150
Muzzle velocity, m/s76
Weight, kg2.1(grenade launcher: 1.5 kg & adaptor: 0.600 kg)
Practical rate of fire, rounds/minFrom 5 to 6
Overall length, mm333x76x170 - on curved-trajectory fire 333x78x137 - on flat-trajectory fire
