40 mm RLV-HEFJ

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

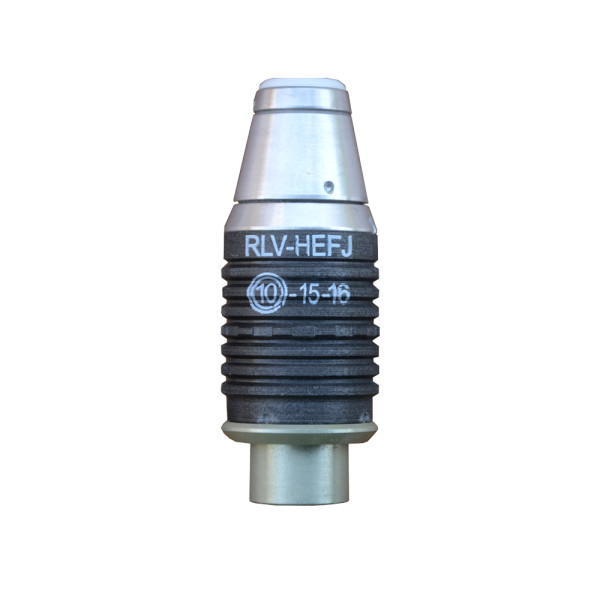

40 mm Round RLV-HEFJ with High Explosive Fragmentation Jump Grenade

NSN: 1310-50-000-7420

The RLV-HEFJ provides effective action against enemy troops in open terrain or in light shelters at distances from 40 m to 400 m.

Performance:

Increased fragments efficiency;
At meeting the target, the HEF charge ejects in the air and ensures Air Burst at height from 0.5 to 2.5m;
Not less than 6m - Defeat Radius;
Suitable against entrenched targets.

The Rounds are compatible with:

ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.;
and on AK-74, AKS-74, AKM, AKMS, AK 101, AK 103;
40 mm MSGL-M Grenade Launcher - revolver type;
40 mm ARSENAL Stand-alone Grenade Launcher SAGL.

Packing 3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally)
Case dimensions, mm	875x398x206
Case weight, kg	47
Case volume, m³	0.072

Specifications	RLV-HEFJ
Type	Low Velocity, High Explosive Fragmentation Jump
Calibre, mm	40
Overall length, mm	106.3 max
Weight of round, kg	0.257 max
Weight of explosive charge, kg	0.046
Max firing range, m	400
Muzzle velocity, m/s	76
Jump height, m	from 0.5 to 2.5
Radius of defeat, m	not less than 6
Explosive filling	A-IX-1 (RDX)
Propellant	P-200
Primer type	KVM-3
Fuze type	AF43 - point detonation, distant armed, self-destruction
Arming distance, m	from 10 to 40
Self-destruction time, s	from 14 to 19
Average pressure (max)	78.4
Grenade body	Steel
Operation temperature range, °C	from minus 50 to 50
CLASS OF EXPLOSION HAZARD:	1.1E; UN 0006
