40 & 40x46 mm Underbarrel Grenade Launchers

40 mm UBGL

40 mm UBGL
40 mm UBGL

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

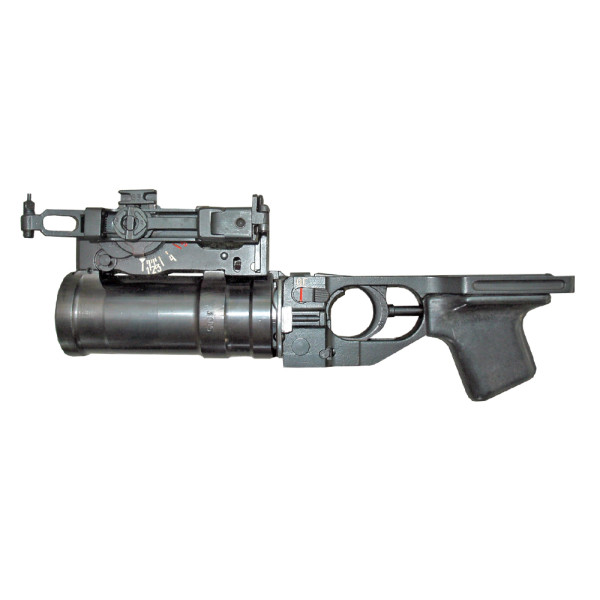

40 mm ARSENAL Underbarrel Grenade Launcher UBGL

NSN: 1010-50-000-0295

Overview


The 40 mm ARSENAL Underbarrel Grenade Launchers UBGL is a single shot launcher, intended for use with assault rifles, for destruction of single or group targets of enemy’s manpower in an open area, in trenches and light shelters of field type, as well as reverse slopes.

Main Features:

    • Add-on launcher;
    • Flat or curved trajectory fire;
    • Muzzle loading;
    • Ammunition - rounds of case-less type.




ACCESSORIES
Receiver Cover latch unit2
Butt plate with sling1
Bag for launcher1
Bag for 10 grenades1
Brush1
Set of groups SPTA for 18 launchers1
Packing
Quantity of the weapons in one20
wooden case, pcs.
Gross weight, kg85
Case dimensions, mm1270x530x387
Volume, m30.26
Specifications
UBGL

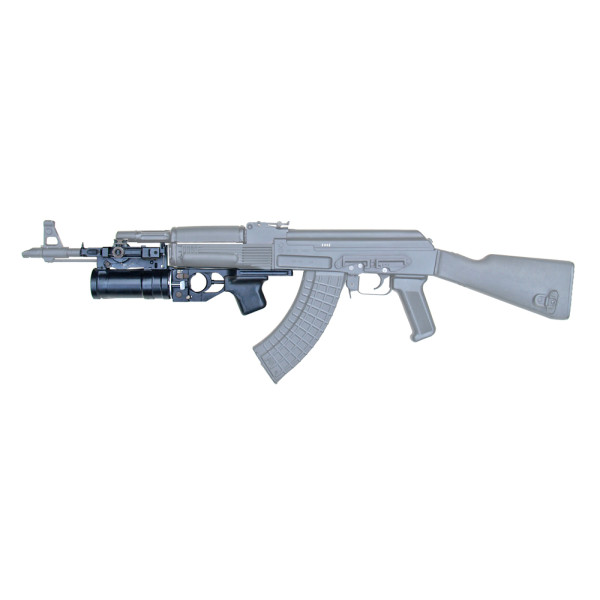

Suitable for attaching to5.45 mm, 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M1, AR-M1F; 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M2F, AR-M12F, AR-M7F, AR-M9, AR-M9F, AR-M1F41; 5.45 mm AK-74 and AKS-74; 5.56 mm AK-101; 7.62 mm AK-103, AKM, AKMS, etc.
Calibre, mm40
Ammunition40 mm Rounds, manufactured by ARSENAL: RLV-HEF, RLV-HEFJ, RLV-TB, RLV-AD, RLV-P, RLV-ILL-WS, RLV-SMK, RLV-S&F, RLV-CS, etc. and all caseless rounds for GP-25
Max firing range, mUp to 400
Effective range at area targets, mUp to 350
Effective range at point targets, mUp to 150
Muzzle velocity, m/s76
Weight, kg1.5
Practical rate of fire, rounds/minFrom 5 to 6
Overall length, mm300x75x170 - on curved-trajectory fire 300x75x120 - on flat-trajectory fire
