Rounds for Grenade Launchers

40 mm RLV-TPM

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

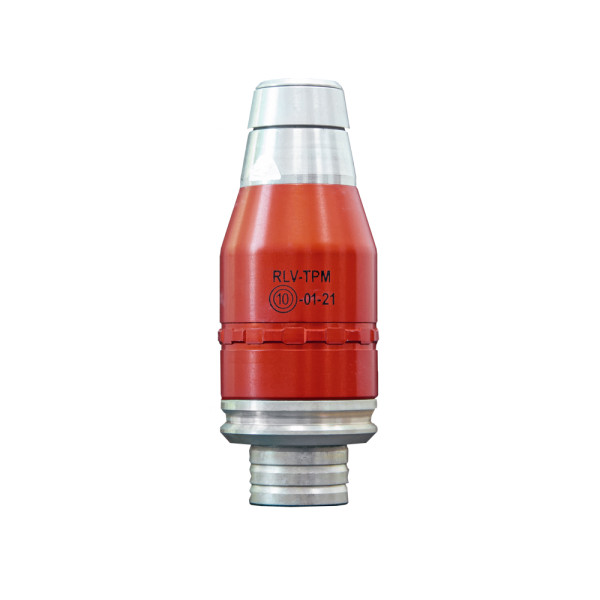

40 mm Round RLV-TPM with Target Practice Marking Grenade

NSN: 1310-50-001-2467

The RLV-TPM Round is intended in full scope training of soldiers in Underbarrel Grenade Lauchers operations, as well as can be used for target designation thanks to the smoke cloud discharged at the target.

Overview

The Rounds are compatible with:

ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.;
and on AK-74, AKS-74, AKM, AKMS, AK 101, AK 103;
40 mm MSGL-M Grenade Launcher - revolver type
40 mm ARSENAL Stand-alone Grenade Launcher SAGL.

Packing 3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally)
Wooden case dimensions, mm	875x398x206
Wooden case weight, kg	47
Wooden case volume, m³	0.072

Specifications	RLV-TPM
Type	Low Velocity, Target Practice Marking
Calibre, mm	40
Overall length, mm	107 max
Weight of round, kg	0.278 max
Payload	smoke composition
Colour of smoke cloud	red-orange
Max firing range, m	400
Muzzle velocity, m/s	76
Fuze type	AF49 - point detonation fuze with distant arming and self-destruction
Arming distance, m	from 10 to 40
Self-destruction time, s	from 14 to 19
Operation temperature range, °C	from minus 50 to 50
CLASS OF EXPLOSION HAZARD:	1.3G; UN 0318
