40 mm RLV-TB

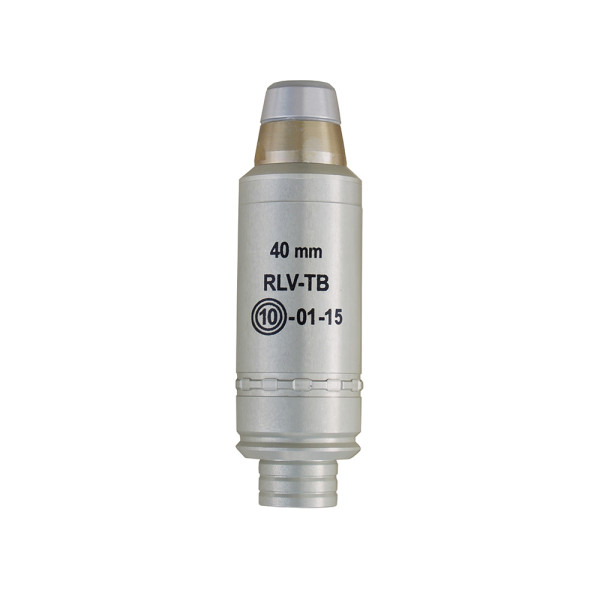

40 mm Round RLV-TB with Thermobaric Grenade

NSN: 1310-50-001-2381

The RLV-TB round is intended for combined destruction, both by air-blast and thermal emission:

of the enemy manpower and equipment located mainly in different types of shelters and covered areas, caves and in the open, as well as
of light armoured and unarmoured vehicles.

Upon impacting a target, the fuze AF41 gets activated and initiates the bursting charge which, in its turn, disperses the thermobaric composition TBC-2. The thermobaric composition TBC-2 interacts with the oxygen from the air; an air-fuel composition is generated which detonates from the bursting charge. A zone characterized with overpressure and intense heat is created in the area.

Overview

The ammunition is designed for use with the following grenade launchers:

ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F; AK-74, AKS-74, AKM, AKMS, AK 101, AK 103;

AVALANCHE Grenade Launcher – revolver type.

Packing 3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. in total)
Wooden case dimensions, mm	875x398x206
Wooden case weight, kg	40
Wooden case volume, m³	0.072

Packing

3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. in total)

Wooden case dimensions, mm

875x398x206

Wooden case weight, kg

Wooden case volume, m³

0.072

Specifications
Type	Low velocity, thermobaric
Calibre, mm	40
Overall length of Round, mm	134 max
Weight of Round, kg	0.254 max
Thermobaric composition type	TBC-2
Thermobaric composition weight, kg	0.087 max
Cartridge case material	aluminum alloy
Max firing range, m	400
Muzzle velocity, m/s	76
Fuze type	AF41 – Point detonating, with super quick and check action, distant arming and self-destruction
Arming distance, m	from 10 to 40
Self-destruction time, s	from 14 to 19
Details of arming function	3 steps of safety
Operation temperature degrees, °C	from minus 50 to 50
SHELF LIFE	10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.
Class of explosion hazard	1.1E, UN 0006

Specifications

Type

Low velocity, thermobaric

Calibre, mm

Overall length of Round, mm

134 max

Weight of Round, kg

0.254 max

Thermobaric composition type

TBC-2

Thermobaric composition weight, kg

0.087 max

Cartridge case material

aluminum alloy

Max firing range, m

400

Muzzle velocity, m/s

Fuze type

AF41 – Point detonating, with super quick and check action, distant arming and self-destruction

Arming distance, m

from 10 to 40

Self-destruction time, s

from 14 to 19

Details of arming function

3 steps of safety

Operation temperature degrees, °C

from minus 50 to 50

SHELF LIFE

10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.

Class of explosion hazard

1.1E, UN 0006
