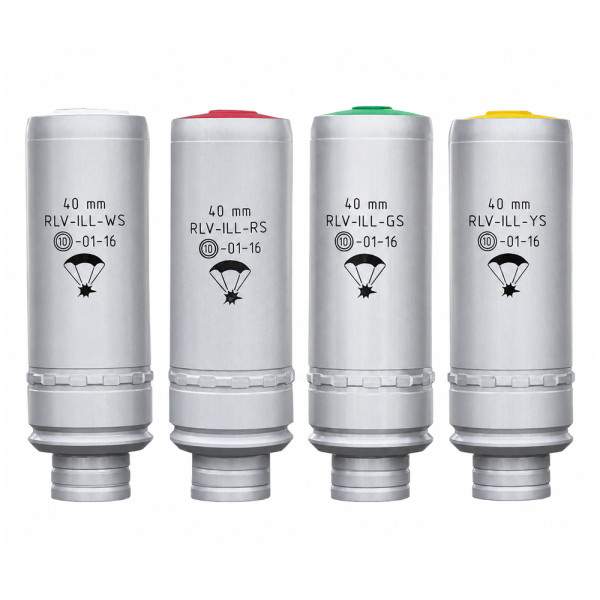

40 mm RLV-ILL-WS, RLV-ILL-RS,RLV-ILL-GS,RLV-ILL-YS

40 mm Rounds RLV-ILL-WS, RLV-ILL-RS, RLV-ILL-GS, and RLV-ILL-YS
with Illuminating Grenade

RLV-ILL-WS
NSN: 1310-50-001-2384

RLV-ILL-RS
NSN: 1310-50-001-4568

RLV-ILL-GS
NSN: 1310-50-001-4569

RLV-ILL-YS
NSN: 1310-50-001-4567

The Rounds RLV-ILL-WS, RLV-ILL-RS, RLV-ILL-GS, RLV-ILL-YS are intended to provide illumination of the target area in the dark. It enhances the tactical capabilities, contributes for the increase in the effectiveness of the conducted operations.

The propellant charge provides the required muzzle velocity of the grenade and ensures its height 150 m, the illuminateing system gets acrivated.

Overview

The Rounds are compatible with:

ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.; and on AK-74, AKS-74, AKM, AKMS, AK 101, AK 103;

40 mm MSGL-M Grenade Launcher - revolver type;

40 mm ARSENAL Stand-alone Grenade Launcher SAGL.

Packing 3 pcs. metal airtight boxes (28 pcs. in each box), arranged in a wooden case (84 pcs. in total)
Wooden case dimensions, mm	875x398x206
Wooden case weight, kg	40
Wooden case volume, m³	0 . 072
CLASS OF EXPLOSION HAZARD	1.4G; UN 0312

Packing

3 pcs. metal airtight boxes (28 pcs. in each box), arranged in a wooden case (84 pcs. in total)

Wooden case dimensions, mm

875x398x206

Wooden case weight, kg

Wooden case volume, m³

0 . 072

CLASS OF EXPLOSION HAZARD

1.4G; UN 0312

Specifications	RLV-ILL-WS	RLV-ILL-RS	RLV-ILL-GS	RLV-ILL-YS
Type	Low velocity, Illuminating	Low velocity, Illuminating	Low velocity, Illuminating	Low velocity, Illuminating
Calibre, mm	40	40	40	40
Overall length of Round, mm	123.5 max	123.5 max	123.5 max	123.5 max
Weight of Round, kg	0.250max	0.250max	0.250max	0.250max
Payload	Pyrotechnical illuminating composition	Pyrotechnical illuminating composition	Pyrotechnical illuminating composition	Pyrotechnical illuminating composition
Muzzle velocity, m/s	76	76	76	76
Candlepower, cd	not less than 90 000	not less than 20 000	not less than 8 000	not less than 16 000
Colour of light	White	Red	Green	Yellow
Time of burning of the star, s	not less than 25	not less than 25	not less than 25	not less than 25
Operation temperature range, °C	from minus 50 to 50	from minus 50 to 50	from minus 50 to 50	from minus 50 to 50
Cartridge case material	aluminum alloy	aluminum alloy	aluminum alloy	aluminum alloy
Fuze type	Pyrotechnical, delay	Pyrotechnical, delay	Pyrotechnical, delay	Pyrotechnical, delay
Time of delay, s	from 3,5 to 4.9	from 3,5 to 4.9	from 3,5 to 4.9	from 3,5 to 4.9

Specifications

RLV-ILL-WS

RLV-ILL-RS

RLV-ILL-GS

RLV-ILL-YS

Type

Low velocity, Illuminating

Calibre, mm

Overall length of Round, mm

123.5 max

Weight of Round, kg

0.250max

Payload

Pyrotechnical illuminating composition

Muzzle velocity, m/s

Candlepower, cd

not less than 90 000

not less than 20 000

not less than 8 000

not less than 16 000

Colour of light

White

Red

Green

Yellow

Time of burning of the star, s

not less than 25

Operation temperature range, °C

from minus 50 to 50

Cartridge case material

aluminum alloy

Fuze type

Pyrotechnical, delay

Time of delay, s

from 3,5 to 4.9

40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.
