40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.

40 mm RLV-SMK and RLV-SMK-3

40 mm RLV-SMK and RLV-SMK-3
40 mm RLV-SMK and RLV-SMK-3

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

40 mm Rounds RLV-SMK and RLV-SMK-3 with Smoke Grenades

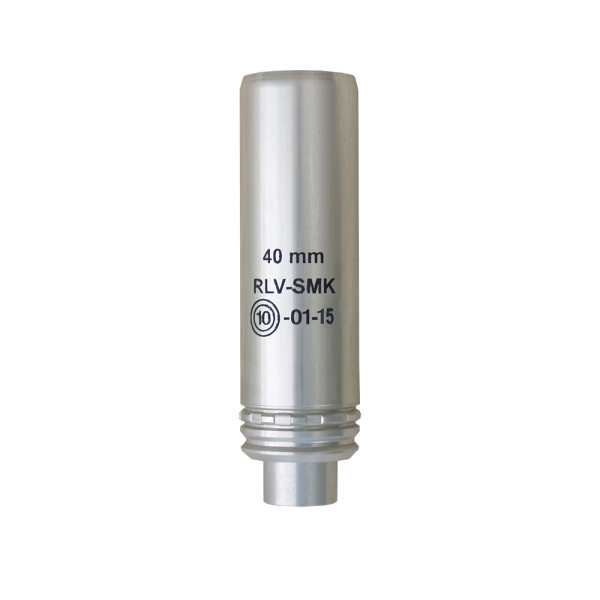

RLV-SMK

NSN: 1310-50-001-1753

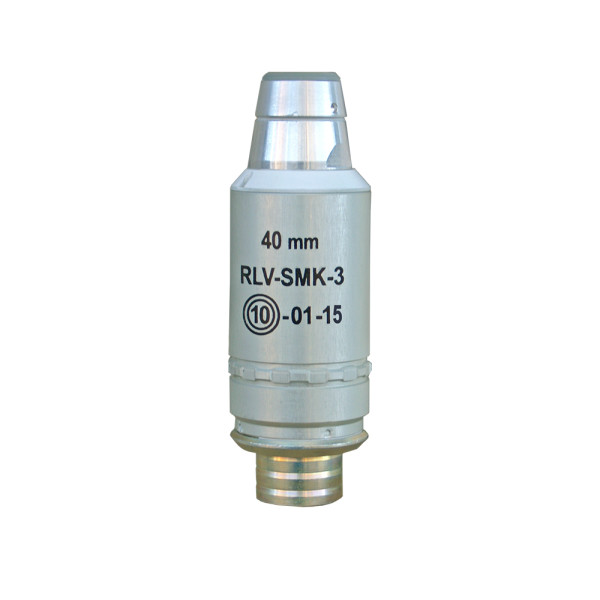

RLV-SMK-3

NSN: 1310-50-001-2468

The Rounds are used at distance up to 200 m (RLV-SMK) and at distance up to 400 m (RLV-SMK-3) in order to quickly place a smoke-screen.

Overview

The Rounds are compatible with:

- ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F, etc.; and on AK-74, AKS-74, AKM, AKMS, AK 101, AK 103

Packing
3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. totally)
RLV-SMKRLV-SMK-3
Wooden case dimensions, mm875x398x206875x398x206
Wooden case weight, kg4040
Wooden case volume, m30.0720.072
Specifications
RLV-SMKRLV-SMK-3
TypeLow Velocity, smokeLow Velocity, smoke
Calibre, mm4040
Overall length, mm138 max122 max
Weight of the round, kg0.260 max0.280 max
Payloadsmoke composition based on red phosphorussmoke composition based on red phosphorus
Weight of payload, kg0.1150.088
Smoke colourwhitewhite
Muzzle velocity, m/s7476
Effective Firing range, m200400
Fuze type-AF49 - Point detonating fuze with distant arming and self-destruction
Aerosol screen formation time, s-up to 5
Aerosol screen existence time, s-from 10 to 20
Aerosol screen dimensions on open terrain, m
● Aerosol screen length-10
● Aerosol screen height-3
Time of intensive smoke emission, sup to 10-
Operation temperature range, °Cfrom minus 40 to 50from minus 50 to 50
CLASS OF EXPLOSION HAZARD :1.4G; UN 03031.4G; UN 0303
