40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.

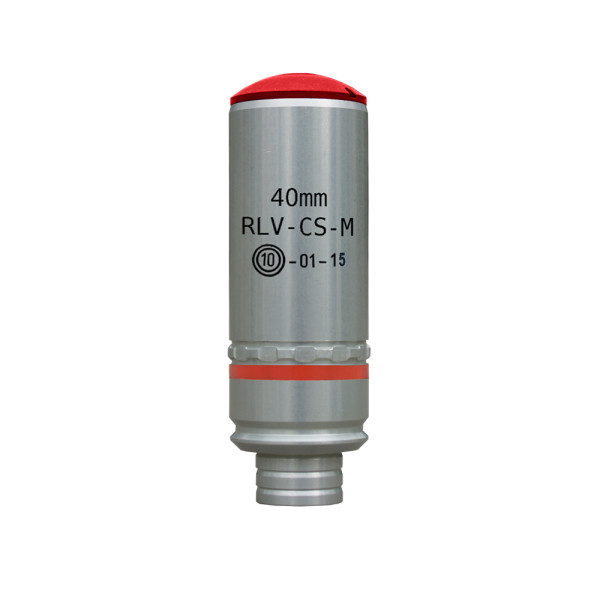

40 mm RLV-CS-M

40 mm RLV-CS-M

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

40 mm Round RLV-CS-M with CS composition

NSN: 1310-50-001-2599

 The 40 mm Rounds RLV-CS-M produce a gas cloud with concentration of irritants CS which causes severe irritation to the eyes, upper respiratory tract and skin.
The purpose of the intended use: to obtain the incapacitating effect, i.e. temporarily incapacitate a person, preventing from active well-directed operations and physical aggressive activity.

Overview

The Rounds are compatible with:
- ARSENAL UBGL, UBGL-1, GP-25, GP-30 and GP-34 Underbarrel Grenade launchers mounted on ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M9, AR-M9F; AK-74, AKS-74, AKM, AKMS, AK 101, AK 103.

Packing
3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. totally)
RLV-CS-M
Wooden case dimensions, mm875x398x206
Wooden case weight, kg40
Wooden case volume, m30.072
Specifications
RLV-CS
TypeLow Velocity, CS
Calibre, mm40
Overall length, mm102 max
Weight of round, kg0.152 max
Irritant agentCS
Time of active gas emission, sapprox. 14
Max effective range, m250
Muzzle velocity, m/s58
Blast area, m3approx. 200
Operation temperature , °Cfrom minus 50 to 50
CLASS OF EXPLOSION HAZARD:1.4G (6.1, 8); UN 0301
