40 mm Rounds Low Velocity for grenade launchers ARSENAL UBGL family, GP-25 and GP-30,GP-34 types.

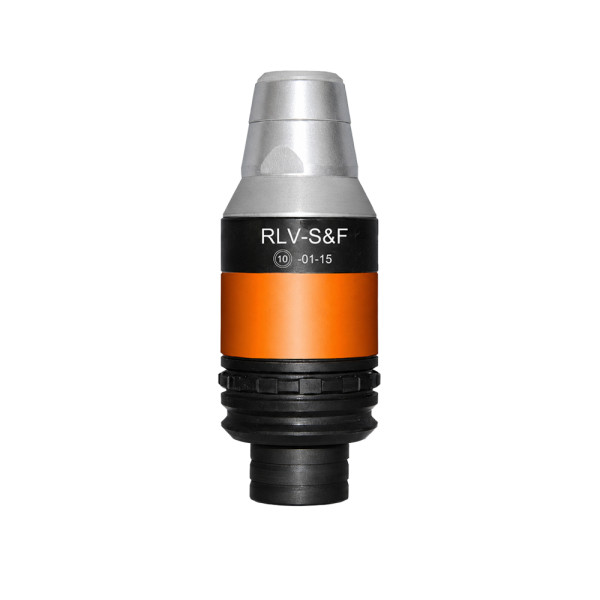

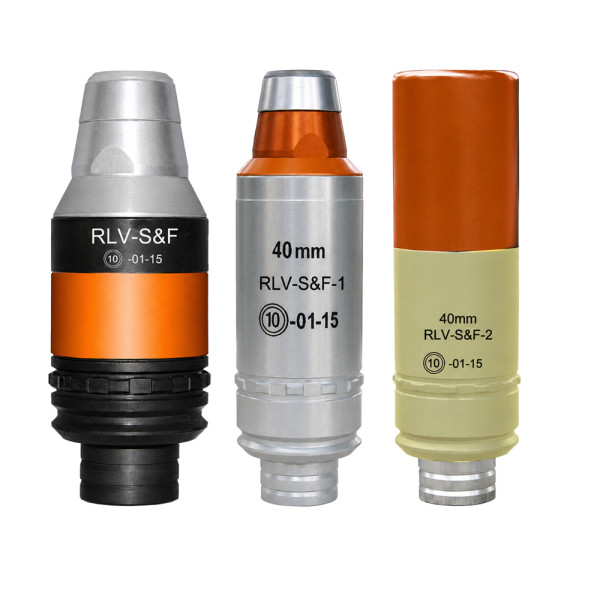

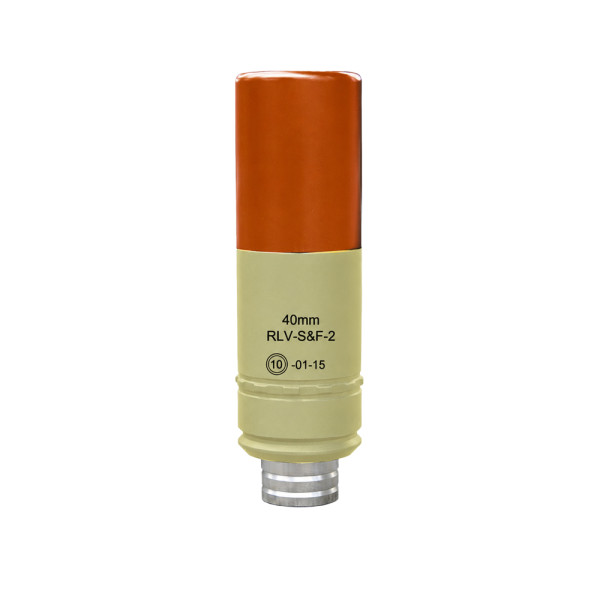

40 mm RLV-S&F and RLV-S&F-2

40 mm RLV-S&F and RLV-S&F-2
40 mm RLV-S&F and RLV-S&F-2
40 mm RLV-S&F and RLV-S&F-2

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

40 mm Rounds RLV-S&F and RLV-S&F-2 with
Sound & Flash Grenades

RLV-S&F

NSN: 1310-50-001-4771

RLV-S&F-2

NSN: 1310-50-001-2482

The 40 mm Rounds RLV-S & Fand RLV-S&F-2  type are used to incapacitate criminals, handle hostage situations, as well as, assist counter terrorist operations. The Grenade stuns and immobilizes the persons in the near vicinity by means of loud, temporarily paralyzing noise and blinding flash.

Overview

The Rounds are compatible with:



Packing
RLV-S&FRLV-S&F-2
Case dimensions, mm875x398x206875x398x206
Case weight, kg5040
Case volume, m30.0720.072
Specifications
RLV-S&FRLV-S&F-2
TypeLow Velocity, Sound & Flash  Low Velocity, Sound and Flash
Calibre, mm4040
Overall length, mmmax 107.4134 max
PayloadPyrotechnical compositionPyrotechnical composition
Weight of round, kg0.275 max0.250 max
Max effective range, m400not less than 100
Muzzle velocity, m/s7676
Candlepower of sound & flash element, cd 5.x1065.106
Sound intensity at a distance 10 m , dB135130
Fuze typeAF49 - point detonation,distant arming and self-destruction N/A
Arming distance, mfrom 10 to 40 N/A
Self-destruction time, sfrom 14 to 19 N/A
Operation temperature range, °Cfrom minus 50 to 50from minus 50 to 50
CLASS OF EXPLOSION HAZARD:1.4E; UN 04121.4E; UN 0412
