40x46 mm RLV-HEFJ

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

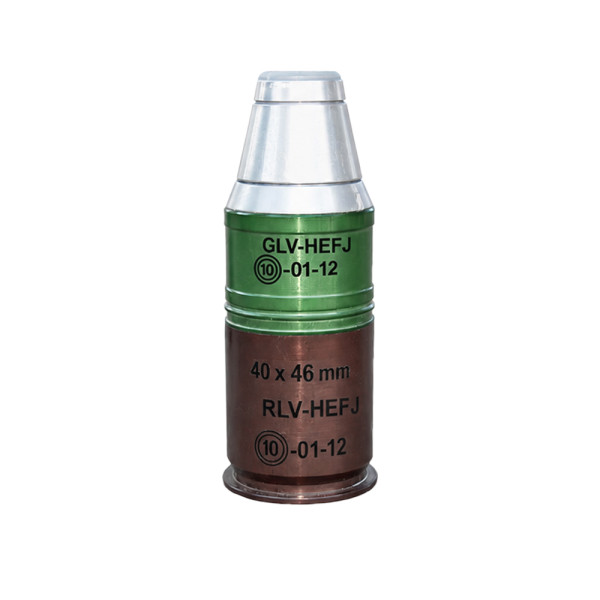

40x46 mm Round RLV-HEFJ with Fragmentation Jump Grenade

The RLV-HEFJ provides effective action against enemy troops in open terrain or in light shelters at distance from 40 m to 400 m.

Performance:

Increased fragments efficiency

at meeting the target, the HEF charge ejects in the air and ensures air burst at height from 0.5 m to 2.5 m;

6 m - Defeat Radius;

Suitable against entrenched targets.

The rounds are compatible with:

- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M8, UBGL-M16; M203;

FN GL1; HK269; AG36, etc.;
Stand-alone Grenade Launchers: ARSENAL SAGL, HK169; HK269; FN GL-S; M320; etc.;
Multi-shot Grenade Launchers: Milkor Mark 1L; Rippel XRGL; ARSENAL MSGL-L, etc.

Packing 3 pcs. metal airtight boxes (28 pcs. in each box), arranged in a wooden case (84 pcs. in total)
Case dimensions, mm	875x398x206
Case weight, kg	40 kg
Case volume, m³	0.072
Class of explosion hazard:	1.1E, UN 0006

Specifications	RLV-HEFJ
Type	Low Velocity, High Explosive Fragmentation Jump
Caliber, mm	40x46
Overall length, mm	113 max
Weight of the Round, kg	0.277
Explosive filling	A-IX-1 (RDX)
Weight of the explosive filling, kg	0.045
Jump height, m	from 0.5 to 2.5
Primer type	Percussion, Boxer
Propellant charge	Double base powder
Cartridge case material	Aluminum alloy
Fuze type	AF43 - point detonating, with ejection charge, distant arming and self-destruction
Arming Distance, m	from 10 to 40
Self-destruction Time, s	from 14 to 19
Max firing range, m	400
Muzzle Velocity, m/s	76
Radius of defeat, m	not less than 6
Operation Temperature Range, °C	from minus 43 to 52
