40 & 40x46 mm Underbarrel Grenade Launchers

40x46 mm UBGL-M7

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

40x46 mm ARSENAL Underbarrel Grenade Launchers

UBGL-M7

NSN: 1010-50-001-0263

Overview

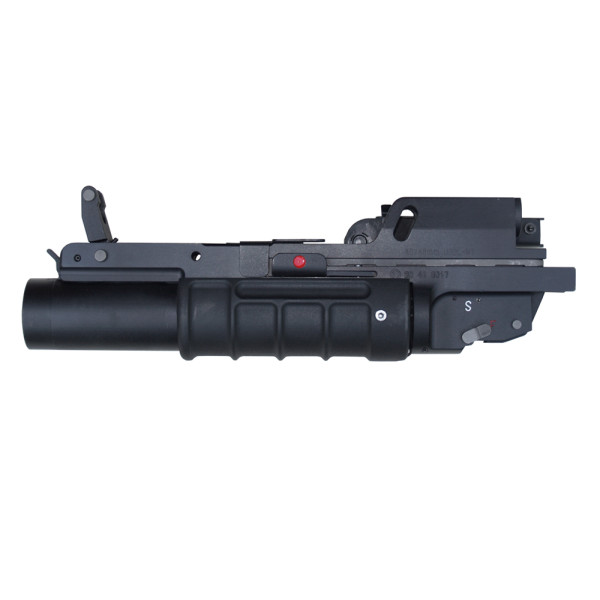

The 40x46 mm ARSENAL Underbarrel Grenade Launcher UBGL-M7 is a single shot launcher, intended for use with assault rifles, for destruction of single or group targets of enemy’s manpower in an open area, in trenches and light shelters of field type, as well as reverse slopes.

Main Features:

Add-on launcher;
Flat or curved trajectory fire;
Chamber loading;
Ammunition - low velocity grenades caliber 40x46 mm with length up to 140 mm

ACCESSORIES
Bag for grenade launcher, pcs.	1
Bag for 5 grenades, pcs.	2
Brush, pc.	1
Box with drift and screwdriver, pc.	1
Cleaning rod, pc.	1
Shackle with snap hook, set	1
Upper hand guard for M16, pc.	-

Packing Content of the case
Grenade launchers in a wooden case, pcs.	18
Set of group SPTA for 18 launchers, set	1
Accessories, set	18
Case dimensions, mm	1270x572x387
Gross weight of wooden case, kg	87
Volume of the wooden case, m³	0.28

Specifications	UBGL-M7

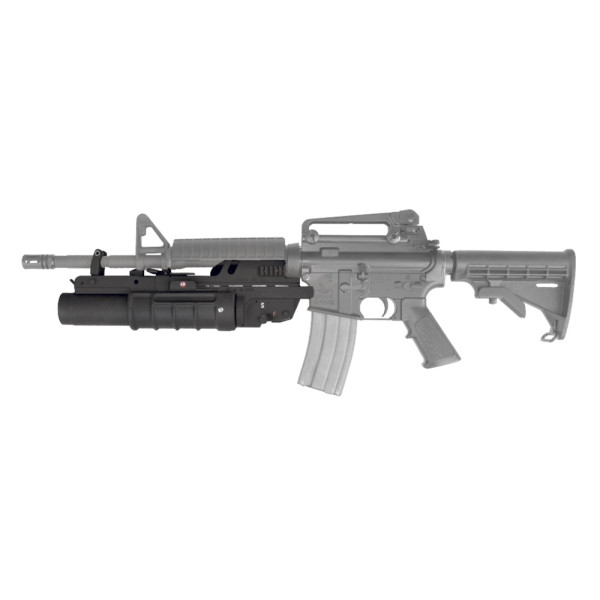

Suitable for attaching to	5.56 mm Assault Rifles type Colt M4 and Bushmaster M4
Calibre, mm	40x46
Ammunition	Arsenal JSCo production: RLV-F, RLV-FJ, RLV-AD, RLV-HEDP, RLV-P, RLV-TPM, RLV-SMK-O, RLV-SMK-W, RLV-S&F, RLV-TB, RLV-ILL-YS, RLV-S, etc. Other manufacturers: M 406 type and all types 40x46 mm low velocity grenades with length up to 140 mm
Muzzle velocity, m/s	76
Rate of fire, rounds/min	Not less than 5
Max firing range, m	Up to 400
Effective range at area targets, m	Up to 350
Effective range at point targets, m	Up to 150
Overall length, mm	357
Barrel length, mm	250
Barrel type	Progressive step
Weight of Underbarrel Grenade Launcher, kg	1.8
Barrel life, rounds	1000
