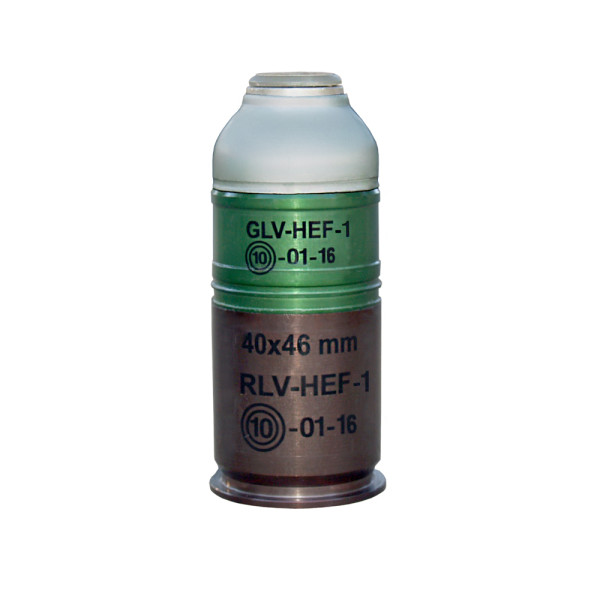

40x46 mm Round RLV-HEF-1 with HE Fragmentation Grenade

NSN: 1310-50-001-3282

The 40x46 mm Round RLV-HEF-1 is intended to destroy enemy personnel, transport means and light-armoured objects at distance of up to 400 m.

Overview

The rounds are designed to be fired from:

- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203;

FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Stand-alone Grenade Launchers: ARSENAL SAGl, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; ARSENAL MSGL; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).

Packing 3 pcs. metal airtight boxes (40 pcs. in each box), arranged in a wooden case (120 pcs. total)
Wooden case dimensions, mm	875x398x206
Wooden case weight, kg	45.4
Wooden case volume, m³	0.072
CLASS OF EXPLOSION HAZARD:	1.1E, UN 0006

Specifications	RLV-HEF-1
Type	Low Velocity, High Explosive Fragmentation
Caliber, mm	40x46
Overall length, mm	102.5 max
Weight of the Round, kg	0.237 max
Explosive filling	A-IX-1 (RDX)
Weight of the explosive filling, kg	0.038
Cartridge case material	aluminum alloy
Primer type	percussion, Boxer
Propellant charge	double base
Fuze	AF411 - point detonating, super-quick and check action, distant arming and self-destruction
Arming Distance, m	from 9 to 28
Self-Destruction Time, s	from 14 to 19
Muzzle Velocity, m/s	76
Max firing range, m	400
Radius of defeat, m	6
Operation Temperature Range, °C	from minus 43 to 52
Shelf life	10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.
