40 & 40x46 mm Grenade Launchers - Revolver Type

40x46 mm MSGL

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

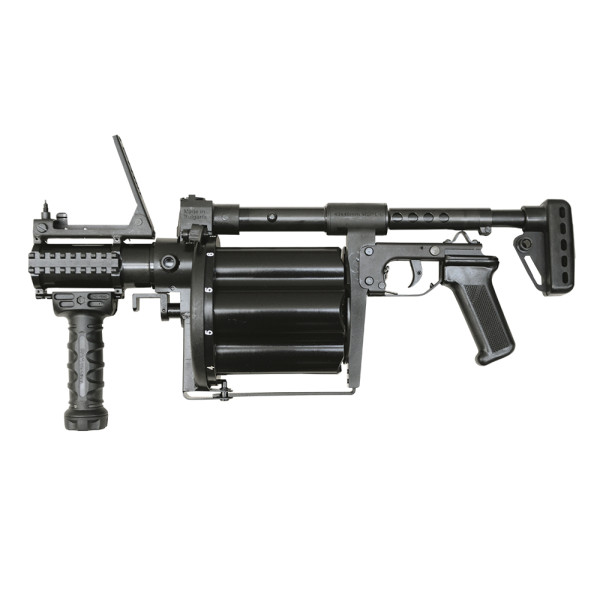

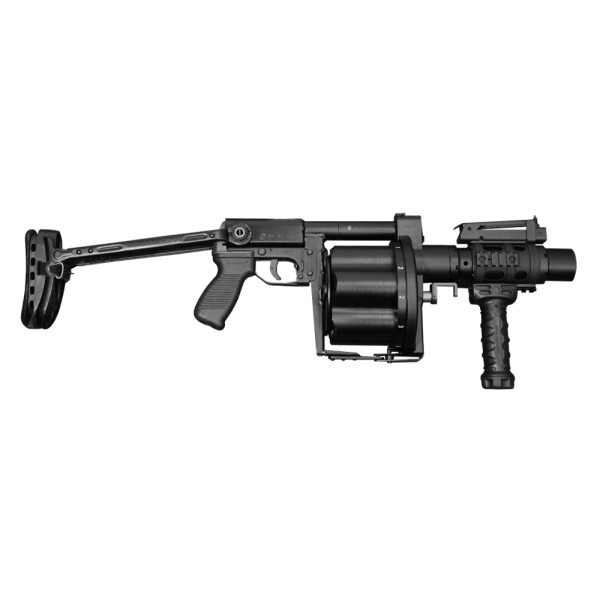

40x46 mm ARSENAL Multi-shot Grenade Launcher MSGL

NSN: 1010-50-000-6960

Overview

40x46 mm ARSENAL Multi-Shot Grenade Launcher MSGL is a perfect semi-automatic weapon for the Army, Border Police, Law Enforcement and Special Police Units, used for destruction of enemy’s manpower (single or group targets) in an open area, or in trenches and light shelters of field type, at distance up to 400 m.

Main Features:

revolver type launcher - 6-round drum;
construction that withstands to rough handling;
chromium plated barrel bore, which enlarges the life of the weapon;
ammunition - low velocity grenades caliber 40x46 mm with length not more than 105 mm;
Picatinny rail (MIL-STD-1913) availability, that provides attachment of additional accessories.

ACCESSORIES
Bag for the launcher, pc.	1
Bag for 12 rounds, pc.	1
Brush, pc.	1
Front handle, pc.	1
Cleaning rod, pc.	1
Bumper with sling, pc.	1
Sling, pc.	1
Set of spare parts, tools and accessories (SPTA) for 5 launchers, set	1
Butt plate, pc.	1
Box with accessories: drift, screwdriver

Packing	MSGL
Number of launchers in one wooden case, pcs.	5
Wooden case dimensions, mm	1330x525x350
Wooden case gross weight, kg	77
Wooden case volume, m³	0.244

Specifications	MSGL
Calibre, mm	40x46
Muzzle velocity, m/s	not less than 75
Fire mode	discontinued, single shots
Max. range of fire, m	up to 400
Effective range at area targets, m	up to 350
Effective range at single targets, m	150
Rate of fire, rounds/ min	not less than 12
Barrel length, mm	230
Weapon length, mm
● With extended butt	764
● With folded butt	530
Weight of unloaded launcher, kg	6.53
Resource, rounds	6000
