40x46 rounds with smoke grenades

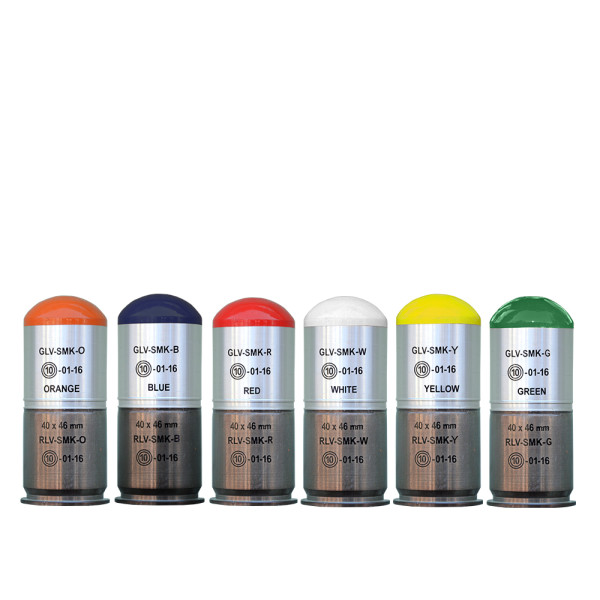

40x46 mm Rounds RLV-SMK-O, RLV-SMK-W, RLV-SMK-B, RLV-SMK-R, RLV-SMK-Y, RLV-SMK-G with Smoke Grenades

RLV-SMK-O: NSN 1310-50-001-1837

RLV-SMK-W: NSN 1310-50-000-5267

RLV-SMK-B: NSN 1310-50-001-4770

RLV-SMK-R: NSN 1310-50-001-2457

RLV-SMK-G: NSN 1310-50-001-5910

The Smoke Rounds are used at distance up to 400 m in order to place a smoke-screen or to mark target.

Overview

The rounds are designed to be fired from:

- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203; FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Stand-alone Grenade Launchers: ARSENAL SAGL, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; ARSENAL MSGL; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).

Packing 3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally)	RLV-SMK-O	RLV-SMK-W	RLV-SMK-B	RLV-SMK-R	RLV-SMK-Y	RLV-SMK-G
Case dimensions, mm	875x398x206	875x398x206	875x398x206	875x398x206	875x398x206	875×398×206
Case gross weight, kg	47	47	47	47	47	47
Case volume, m³	0.072	0.072	0.072	0.072	0.072	0.072

Packing

3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally)

RLV-SMK-O

RLV-SMK-W

RLV-SMK-B

RLV-SMK-R

RLV-SMK-Y

RLV-SMK-G

Case dimensions, mm

875x398x206

875×398×206

Case gross weight, kg

Case volume, m³

0.072

TECHNICAL CHARACTERISTICS	RLV-SMK-O	RLV-SMK-W	RLV-SMK-B	RLV-SMK-R	RLV-SMK-Y	RLV-SMK-G
Type	Low Velocity, Smoke	Low Velocity, Smoke	Low Velocity, Smoke	Low Velocity, Smoke	Low Velocity, Smoke	Low Velocity, Smoke
Caliber, mm	40x46	40x46	40x46	40x46	40x46	40x46
Overall length, mm	101 max	101 max	101 max	101 max	101 max	101 max
Weight of round, kg	0.227 max	0.23 max	0.23 max	0.235 max	0.235 max	0.230 max
Weight of grenade, kg	0.177 max	0.18 max	0.18 max	0.183 max	0.183 max	0.180 max
Payload	Smoke composition	Smoke composition	Smoke composition	Smoke composition	Smoke composition	Smoke composition
Weight of the payload, kg	0.048	0.052	0.052	0.057	0.057	max 0.052
Smoke colour	orange	white	blue	red	yellow	green
Time of smoke emission, s	not less than 20	not less than 20	not less than 20	not less than 20	not less than 20	20 min
Propellant charge	Double base powder	Double base powder	Double base powder	Double base powder	Double base powder	Double base powder
Primer type	Percussion, Boxer type	Percussion, Boxer type	Percussion, Boxer type	Percussion, Boxer type	Percussion, Boxer type	Percussion,Boxer type
Cartridge case material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Fuze	pyrotechnical with delay action	pyrotechnical with delay action	pyrotechnical with delay action	pyrotechnical with delay action	pyrotechnical with delay action	pyrotechnical
Muzzle velocity, m/s	76	76	76	76	76	76
Maximal firing range, m	400	400	400	400	400	400
Operation temperature range, °C	from minus 43 to 52	from minus 43 to 52	from minus 43 to 52	from minus 43 to 52	from minus 43 to 52	from minus 43 to 52
CLASS OF EXPLOSION HAZARD	1.4G; UN 0303	1.4G; UN 0303	1.4G; UN 0303	1.4G; UN 0303	1.4G; UN 0303	1.4G; UN 0303
