40 & 40x46 mm Underbarrel Grenade Launchers

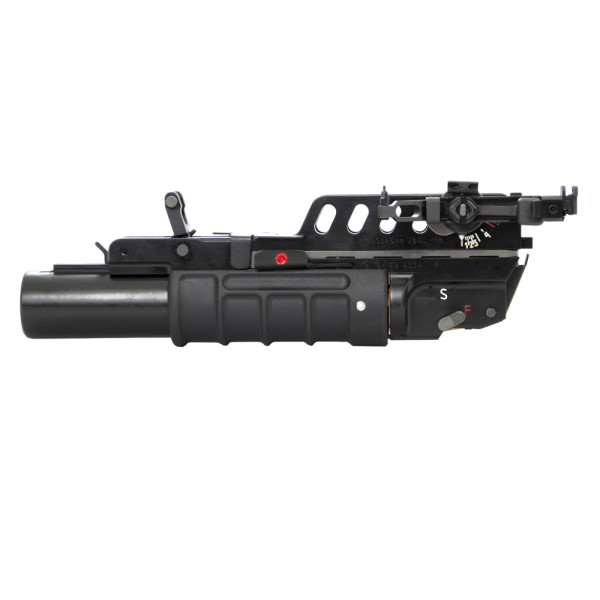

40x46 mm UBGL-M6

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

40x46 mm ARSENAL Underbarrel Grenade Launchers

UBGL-M6

NSN: 1010-50-000-6777

Overview

The 40x46 mm ARSENAL Underbarrel Grenade Launcher UBGL-M6 is a single shot, breech loaded launcher, intended for use with the following assault rifles versions for increasing their firepower and greater convenience.

Main Features:

Add-on launcher;
Flat or curved trajectory fire;
Chamber loading;
Ammunition - low velocity grenades caliber 40x46 mm with length up to 140 mm;

ACCESSORIES
Bag for grenade launcher, pcs.	1
Bag for 5 grenades, pcs.	2
Brush, pc.	1
Receiver cover latch unit, pc.	1
Drift, pc.	1

Packing Content of the case
Grenade launchers in a wooden case, pcs.	18
Set of group SPTA for 18 launchers, set	1
Accessories, set	18
Case dimensions, mm	1270x572x387
Gross weight of wooden case, kg	82
Volume of the wooden case, m³	0.28

Specifications	UBGL-30
Suitable for attaching to	5.45 mm, 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M1, AR-M1F; 7.62 mm ARSENAL Assault Rifles AR, AR-F, AR-1, AR-1F; 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M7F, AR-M9, AR-M9F, AR-M2F etc. 5.45 mm AK-74 and AKS-74; 5.56 mm AK-101; 7.62 mm AK-47, AKS-47, AK-103, AKM, AKMS
Calibre, mm	40x46
Ammunition	Arsenal JSCo production: RLV-HEF, RLV-HEFJ, RLV-AD, RLV-HEDP, RLV-P, RLV-TPM, RLV-SMK-O, RLV-SMK-W, RLV-S&F, RLV-TB, RLV-ILL-YS, RLV-S, RLV-CS, etc. Other manufacturers: M 406 type and all types 40x46 mm low velocity grenades with length up to 140 mm
Muzzle velocity, m/s	76
Rate of fire, rounds/min	Not less than 5
Max firing range, m	Up to 400
Effective range at area targets, m	Up to 350
Effective range at point targets, m	Up to 150
Overall length, mm	375
Barrel length, mm	250
Weight of Underbarrel Grenade Launcher, kg	1.65
System life, rounds	1000
