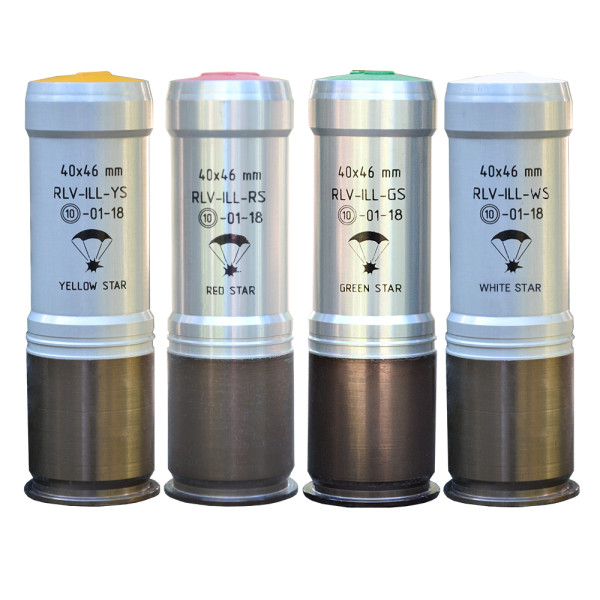

40x46 mm Rounds RLV-ILL-YS, RLV-ILL-WS, RLV-ILL-GS and RLV-ILL-RS with Illuminating Grenade ( with Parachute )

RLV-ILL-YS: NSN 1310-50-001-2385

RLV-ILL-WS: NSN 1310-50-001-2743

RLV-ILL-GS: NSN 1310-50-001-3933

RLV-ILL-RS: NSN 1310-50-001-3932

The RLV-ILL Round is used to provide illumination of the target area in the dark. It enhances the tactical capabilities, contributes for the increase in the effectiveness of the conducted operations.



Overview

The rounds are designed to be fired from:

- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203;

FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Stand-alone Grenade Launchers: ARSENAL UGGL-M1, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Multi-shot Grenade Launchers: Milkor Mark 1L; Rippel XRGL; ARSENAL MSGL-L, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).

Packing
3 metal airtight boxes (28 pcs. in each box), placed in a wooden case. (84 pcs. totally)
Case dimensions, mm875x398x206
Case weight, kg40
Case volume, m30.072
Specifications
RLV-ILL-YSRLV-ILL-WSRLV-ILL-GS RLV-ILL-RS
TypeLow Velocity, Signaling with parachuteLow Velocity, Signaling with parachuteLow Velocity, Signaling with parachuteLow Velocity, Signaling with parachute
Caliber, mm40x4640x4640x4640x46
Overall length of the round, mm134 max134 max134 max134 max
Weight of round, kg0.257 max0.257 max0.257 max0.257 max
Payloadpyrotechnical illuminating compositionpyrotechnical illuminating compositionpyrotechnical illuminating compositionpyrotechnical illuminating composition
Color of lightyellowwhiteGreenRed
Primer typePercussionPercussionPercussionPercussion
Powder typeDouble base Double base Double base Double base
Cartridge case materialAluminum alloyAluminum alloyAluminum alloyAluminum alloy
FuzePyrotechnical, delayPyrotechnical, delayPyrotechnical, delayPyrotechnical, delay
Time of delay, sfrom 4.1 to 4.9from 4.1 to 4.9from 4.1 to 4.9from 4.1 to 4.9
Candlepower, cdnot less than 16 000not less than 90 000not less than 8 000not less than 20 000
Charge burning time, snot less than 25not less than 25not less than 25not less than 25
Star flight altitude, mnot less than 185not less than 185not less than 185not less than 185
Muzzle Velocity, m/s76767676
Cartridge case materialaluminum alloyaluminum alloyaluminum alloyaluminum alloy
Operation temperature range, °Cfrom minus 43 to 52from minus 43 to 52from minus 43 to 52from minus 43 to 52
CLASS OF EXPLOSION HAZARD1.4 G; UN 03121.4 G; UN 03121.4 G; UN 03121.4 G; UN 0312
