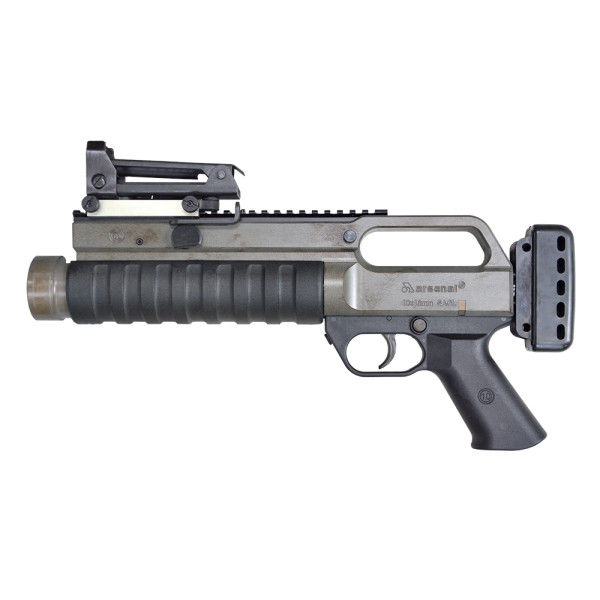

40x46 mm ARSENAL Stand-alone Grenade Launcher SAGL
NSN: 1010-50-001-5108
Overview
40X46 mm ARSENAL Stand-alone Grenade Launcher SAGL is a single shot, powerful close support weapon, intended for use against single and area targets at distance up to 400 m.

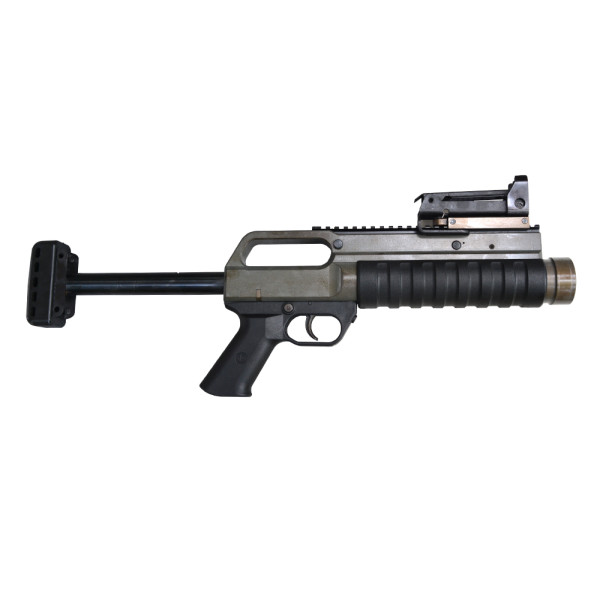

The SAGL has a telescopic foldable butt. Upon firing with the Launcher, the butt should be always in extended (combat) position.
A Rail MIL-STD 1913 (Picatinny) is integrated on every Launcher (at the 12 o'clock position) for attachment of additional accessories.
The trigger mechanism is of firing pin type and has a safety that blocks the movement of the trigger. Cocking of the firing pin is performed upon barrel closing.
The ARSENAL Grenade Launchers SAGL intended to fire low velocity grenades type M 406
with length up to 160 mm.
Main Features:
- Stand-alone launcher;
- Telescopic folding butt;
- Chamber loading;
- A Rail MIL-STD 1913 (Picatinny) is integrated on every Launcher (at the 12 o'clock position) for attachment of additional accessories.
- Ammunition - low velocity grenades caliber 40x46 mm with length up to 160 mm.
|
|---|
| Bag for grenade launcher, pcs. | 1 |
| Bag for 12 grenades, pcs. | 1 |
| Sling, pc | 1 |
| Box with Accessories (Drift and Screwdriver), set | 1 set |
| Cleaning rod | 1 |
| Brush | 1 |
Packing Ten (10) SAGL Launchers, preserved with gun oil, and their accessories are packed in a wooden case, as follows: |
|---|
| Grenade launchers packed in a wooden case, pcs. | 10 |
| Bag for Launcher, pcs. | 10 |
| Bag for 12 Rounds, pcs. | 10 |
| Sling, pcs | 10 |
| Box with Accessories (Drift and Screwdriver), set | 10 |
| Cleaning rod | 10 |
| Brush | 10 |
| Wooden case dimensions, mm | 1380 x 530 x 387 |
| Gross weight of wooden case, kg | 85 |
| Volume of the wooden case, m3 | 0.28 |
| SAGL |
|---|
| Calibre, mm | 40x46 |
| Ammunition | Arsenal JSCo production:
RLV-HEF, RLV-HEFJ, RLV-AD, RLV-TB, RLV-HEDP, RLV-P, RLV-TPM, RLV-SMK-O, RLV-SMK-W, RLV-S&F, etc.;
Other manufacturers:
M 406 type and all types 40x46 mm low velocity grenades with length up to 160 mm |
| Weight with mechanical sight, kg, max | 2.95 |
| Weight without mechanical sight, kg, max | 2.65 |
| Overall dimensions, mm |
| Length with extended butt (combat position), max | 608 |
| Length with retracted butt (travelling position), max | 425 |
| Width, max | 59 |
| Height with extended sight, max | 303 |
| Height with retracted sight, max | 244 |
| Height without sight, max | 194 |
| Barrel length, mm | 230 |
| Number of grooves in the barrel bore, pcs. | 6 (Six), groove pitch 1200 mm |
| Sight radius, mm | 93 |
| Muzzle velocity, m/s | 76 |
| Rate of fire, rounds/min | not less than 6 |
| Max firing range, m | Up to 400 |
| Effective range at area targets, m | Up to 350 |
| Effective range at point targets, m | Up to 150 |
| Barrel life, rounds | 1000 |
