5.56x45 mm and 7.62x39 mm AR-M12F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

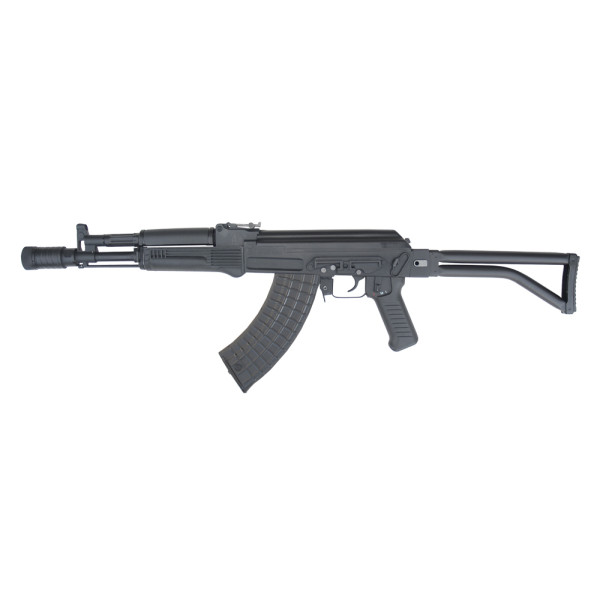

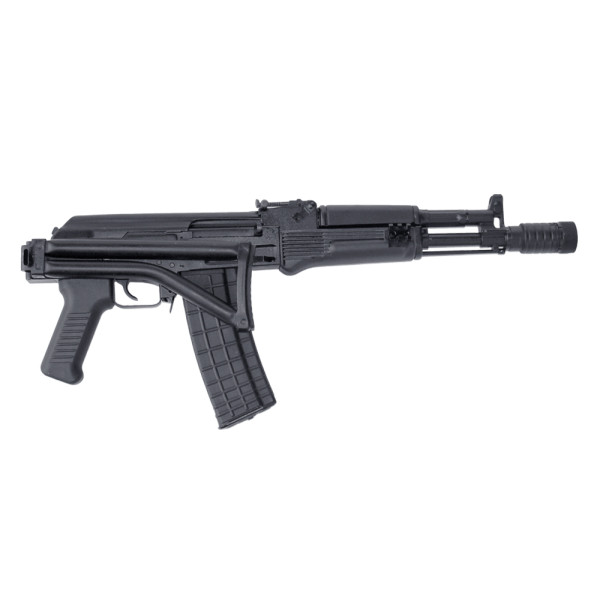

5.56x45 mm ARSENAL Assault Rifles AR-M12F small-size with folding butt

NSN: 1005-50-000-6962

7.62x39 mm ARSENAL Assault Rifles AR-M12F small-size with folding butt

NSN: 1005-50-001-1855

The 5.56 mm and 7.62 mm AR-M12F are highly effective automatic weapon, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached;
Metal right-side folding butt;
Ambidextrous safety lever for rapid fire mode switchover;

The Assault Rifle design allows the attachment of 40x46mm UBGL-M6, UBGL-M8 and 40 mm UBGL-1 ARSENAL Underbarrel Grenade
Launchers and firing with them.

Optional Extras (Paid Separately):

Luminous spots on the sights;
20/30 round translucent magazine (for 5.56x45 mm);
Black polymer magazines for 5, 10 and 40 cartridges
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Silencer

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazines 4 pcs.
5.56x45 mm
7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380x530x387
Gross Weight of the wooden case, kg	86
Volume of the wooden case, m³	0.28

Specifications	AR-M12F	AR-M12F
Calibre,mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single and automatic	single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	880	-
● Bullet type SS 109	830	-
Sighting range, m	up to 500	up to 500
Maximum firing range, m	1100	1100
Effective firing range, m	400	350
Magazine capacity, rounds	30	30
Barrel length, mm	320	320
Sight radius, mm	278	278
Overall length, mm
● With extended butt	875	875
● With folded butt in travelling position	630	630
Weight, kg
● Rifle without magazine	3.7	3.7
● Round loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
