Home / Military & Law Enforcement / Weapons / Assault Rifles / 5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 320 mm) / 5.56x45 mm and 7.62x39 mm AR-M52F

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 320 mm)

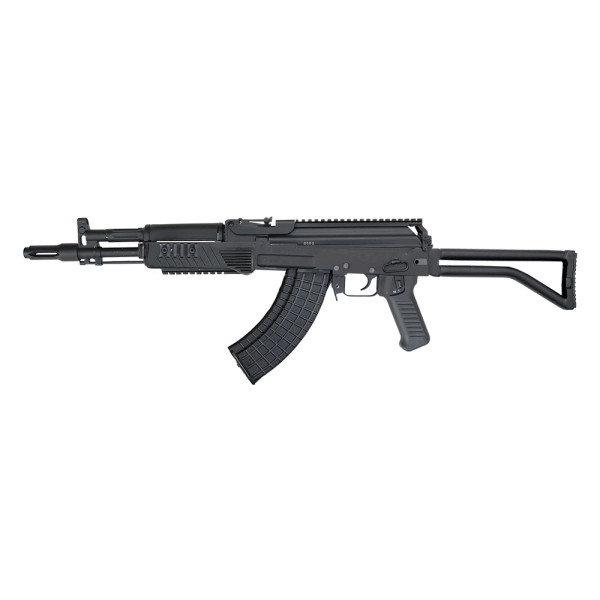

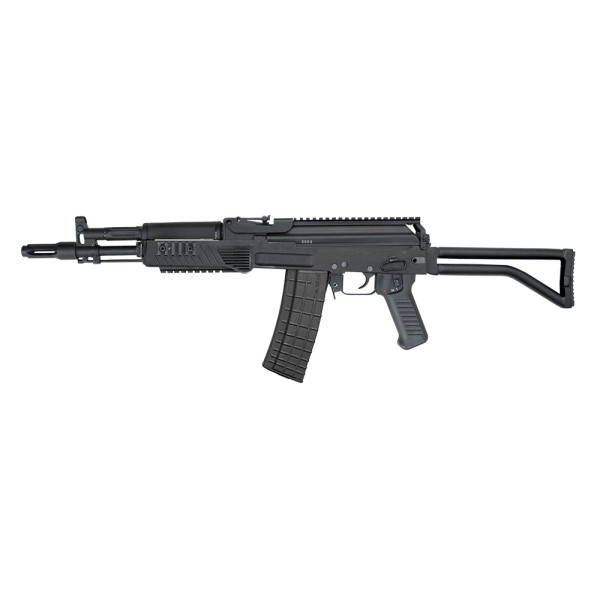

5.56x45 mm and 7.62x39 mm AR-M52F

5.56x45 mm and 7.62x39 mm AR-M52F
5.56x45 mm and 7.62x39 mm AR-M52F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

5.56x45 mm  ARSENAL Assault Rifle AR-M52F small-size with folding butt

NSN: 1005-50-001-7760

7.62x39 mm ARSENAL Assault Rifle AR-M52F small-size with folding butt

NSN: 1005-50-001-4215

The 5.56 mm and 7.62 mm AR-M52F are highly effective automatic weapon, used as armament of army troops, reconnoitring detachments, special antiterrorist and police forces, and security services.

Main Features:

  • Hot-die hammer forged and milled receiver, bolt, bolt carrier and double-hook trigger for increased durability and service life;
  • Cold radial hammer forged barrel built on Steyr manufacturing technology for increased hardness and better structure of the material;
  • Hard chrome plated barrel bore and chamber;
  • FRP (fiber-glass reinforced polycaproamide) pistol grip, handguards and magazine - heat/cold resistant with antiglare matte finish;
  • MIL-STD (1913) Picatinny rails integrated on three sides of the lower handguard (at the 3, 6, and 9 o'clock positions);
  • MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes;
  • Ambidextrous Safety Lever for rapid fire mode change;
  • Self-illuminated Tritium sights for faster target acquisition at low-light conditions (optional);
  • Right-side folding tubular steel enforced buttstock with a quick release/lock mechanism;
  • Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.
Optional Extras (Paid Separately):
  • 20/30-round translucent polymer magazine (for 5.56x45 mm);
  • Black polymer magazines for 40 cartridges (for 7.62x39 mm);
  • Front sight adjusting kit (in the ratio 1:10);
  • Set for magazines coupling;
  • Blank fire attachment;
  • Knife scissors;
  • Front hand grip;
  • Silencer.
ACCESSORIES
Cleaning rod and cleaning rod extender
Multi-purpose carrying sling
Box with accessories (brush, drift, slush brush, screwdriver, scourer)
Magazine  4 pcs
Bag for 4 magazines
Oil can
Packing
Number of rifles in one wooden case, pcs.10
Case dimensions, mm1 380 x 572x 387
Gross Weight of the wooden case, kg93
Volume of the wooden case, m30.31
Specifications
AR-M52FAR-M52F
Calibre, mm5.567.62
Cartridge, mm5.56x457.62x39
Fire modesingle, automatic, 3 round burstsingle, automatic, 3 round burst
Rate of fire, rounds/min600600
Practical rate
● Automatic fire, rounds/minup to 100up to 100
● Single fire, rounds/minup to 40up to 40
Muzzle velocity, m/s
● Bullet M193880-
● Bullet type SS109830-
Sighting range, mup to  500up to  500
Maximum firing range, m11001100
Effective firing range, m400350
Magazine capacity, rounds3030
Barrel length, mm320320
Sight radius, mm278278
Overall length, mm
● With extended butt 885 885
● With retracted butt630630
Weight, kg
● Rifle without magazine3.93.9
● Loaded magazine, kg0.580.72
Principle of functiongas operated automatic riflegas operated automatic rifle
System life, rounds15 00015 000
