5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 320 mm)

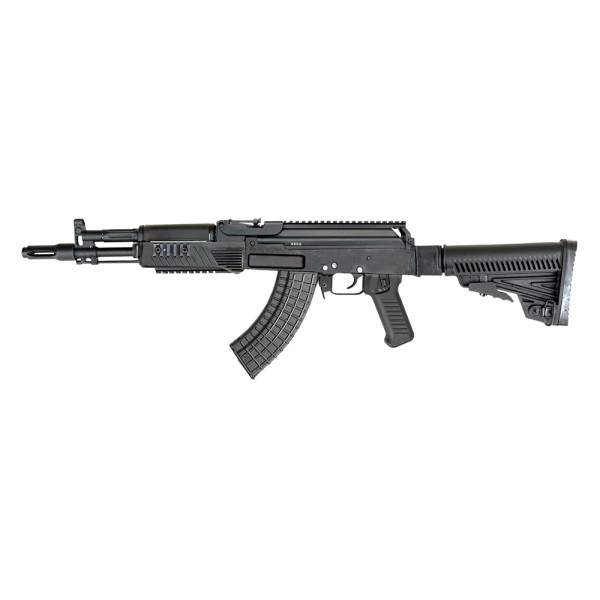

5.56x45 mm and 7.62x39 mm AR-M52T

5.56x45 mm and 7.62x39 mm AR-M52T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

5.56x45 mm  ARSENAL Assault Rifles AR-M52T small-size with telescopic plastic butt

NSN:1005-50-001-4616

7.62x39 mm ARSENAL Assault Rifles AR-M52T small-size with telescopic plastic butt

NSN:1005-50-001-4774



The 5.56 mm AR-M52T and 7.62 mm AR-M52T are highly effective automatic weapons, used as armament of army troops, reconnoitring detachments, special antiterrorist and police forces, and security services.

Main Features:

  • Gas operated automatic rifle;
  • Fire mode – single, automatic;
  • Hot-die forged and milled receiver for increased durability and service life;
  • Chromium plated Barrel bore and chamber;
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 30-round Magazine - heat/cold resistant with antiglare matte finish;
  • Possibility of several stages of telescopic butt extension;
  • MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions);
  • MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes ;
  • MIL-STD (1913) Picatinny rail integrated on the Upper handguard (at the 12 o'clock positions);
  • Self-illuminated Tritium sights for faster target acquisition at low-light conditions (optional);
  • Ambidextrous Safety Lever for rapid fire mode switchover;
  • Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers,
    and firing with them.



Optional Extras (Paid Separately):
  • Luminous spots on the sights;
  • 20/30-round translucent polymer magazine (for 5.56x45 mm);
  • Black polymer magazines for 40 cartridges (for 7.62x39 mm);
  • Front sight adjusting kit (in the ratio 1:10);
  • Blank fire attachment;
  • Magazines coupling device;
  • Knife scissors;
  • Front hand grip;
  • Silencer.
ACCESSORIES
Cleaning rod
Sling
Bag for 4 magazines
Oil can
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine  4 pcs
5.56x45 mm
7.62x39 mm
Cleaning rod extender
Packing
Number of rifles in one wooden case, pcs.10
Case dimensions, mm1 380 x 572x 387
Gross Weight of the wooden case, kg96
Volume of the wooden case, m30.31
SPECIFICATIONS
AR-M52T AR-M52T
Calibre, mm5.567.62
Cartridge, mm5.56x457.62x39
Fire modesingle and automatic single and automatic
Rate of fire, rounds/min600600
Practical rate
● Automatic fire, rounds/minup to 100up to 100
● Single fire, rounds/minup to 40up to 40
Muzzle velocity, m/s
● Bullet type M193880-
● Bullet type SS109830-
Sighting range, mup to  500up to  500
Effective firing range, m400400
Maximum firing range, m11001100
Magazine capacity, rounds3030
Barrel length, mm320320
Sight radius, mm278278
Overall length, mm
● With extended butt940940
● With retracted butt in travelling position840840
Weight, kg
● Rifle without magazine4.24.2
● Loaded magazine, kg0.580.72
Principle of functiongas operatedgas operated
System life, rounds15 00015 000
