5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 320 mm)

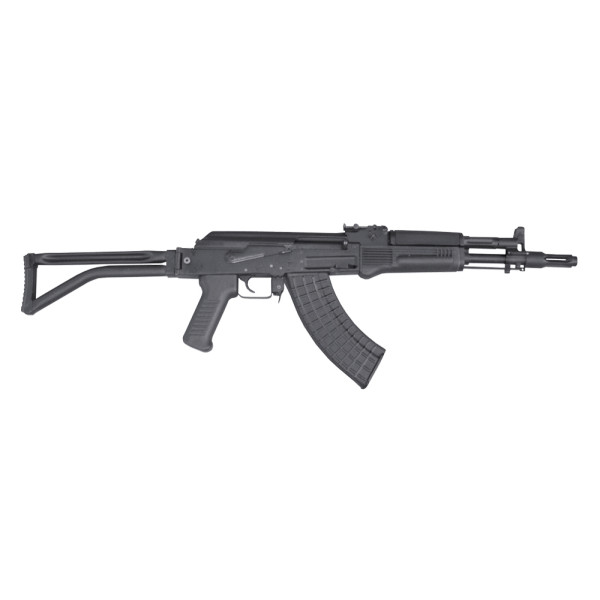

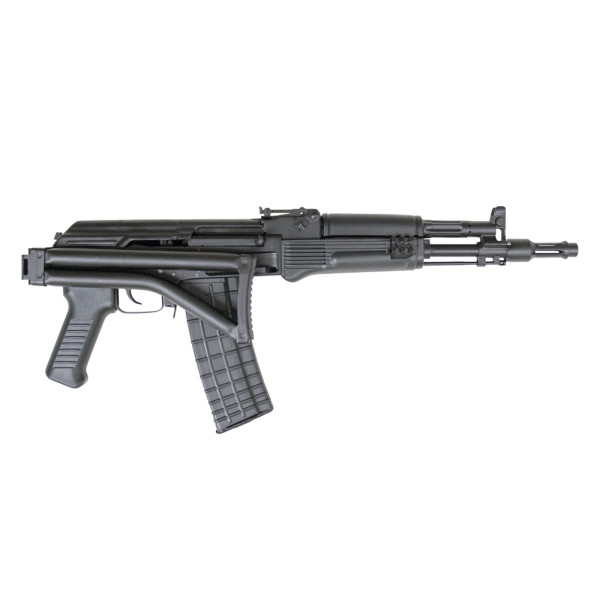

5.56x45 mm and 7.62x39 mm AR-M8F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

5.56x45 mm ARSENAL Assault Rifles AR-M8F small-size with folding butt
NSN: 1005-50-001-1741

7.62x39 mm ARSENAL Assault Rifles AR-M8F small-size with folding butt
NSN: 1005-50-001-1742

The 5.56 mm AR-M8F and 7.62 mm AR-M8F are highly effective automatic weapons, used as armament of army troops, reconnoitring detachments, special antiterrorist and police forces, and security services.

Main Features:

Gas operated automatic rifle;
Fire mode – single, automatic;
Hot-die forged and milled receiver for increased durability and service life;
Chromium plated Barrel bore and chamber;
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip and 30-round Magazine – heat/cold resistant with antiglare matte finish;
Right-side folding tubular steel enforced butt with a quick release/lock mechanism;
Ambidextrous Safety Lever for rapid fire mode switchover;
Self-illuminated Tritium sights for faster target acquisition at low-light conditions (optional);
Side mounted scope rail for dovetail based sight carriers with sighting devices;
Provision for attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

Black polymer magazine for 40 cartridges; ( for 7.62x39 mm )
20/30-round translucent polymer magazine; ( for 5.56x45 mm )
Front sight adjusting kit (in the ratio 1:10);
Set for magazines coupling;
Blank fire attachment;
Knife-scissors.
Silencer

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine 4 pcs
5.56x45 mm
7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380 x 530x 387
Gross Weight of the wooden case, kg	85
Volume of the wooden case, m³	0.28

Specifications	AR-M8F	AR-M8F
Calibre, mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single, automatic	single, automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	880	-
● Bullet type SS 109	830	-
Sighting range, m	up to 500	up to 500
Maximum firing range, m	1100	1100
Effective firing range, m	400	350
Magazine capacity, rounds	30	30
Barrel length, mm	320	320
Sight radius, mm	278	278
Overall length, mm
● With extended butt	880	880
● With folded butt in travelling position	630	630
Weight, kg
● Rifle with empty magazine	3.75	3.75
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
