5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

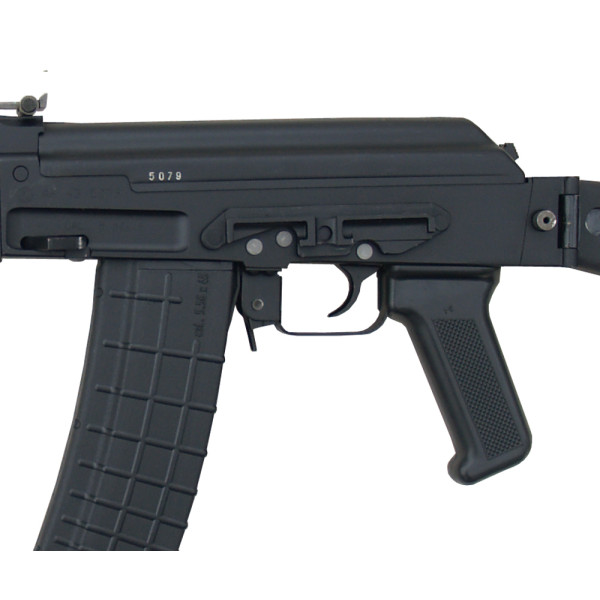

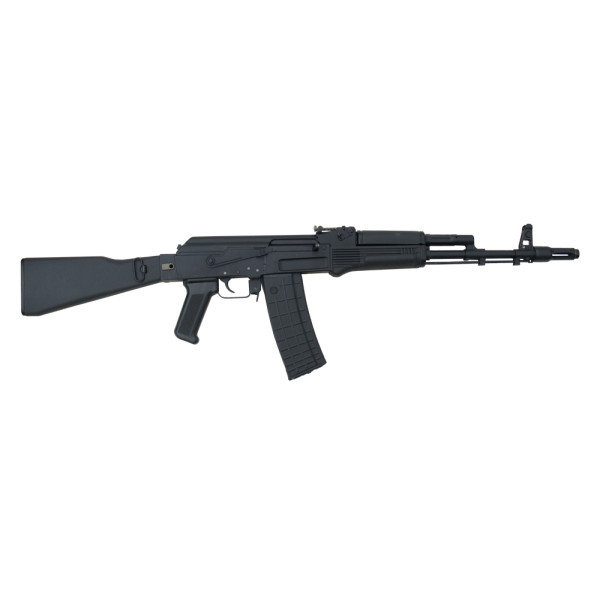

5.56 x45 mm and 7.62x39 mm AR-M5F41

5.56 x45 mm and 7.62x39 mm AR-M5F41
5.56 x45 mm and 7.62x39 mm AR-M5F41

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

5.56x45 mm ARSENAL Assault Rifle AR-M5F41 with folding butt

NSN: 1005-50-001-4757

7.62x39 mm ARSENAL Assault Rifle AR-M5F41 with folding butt

NSN: 1005-50-001-4432

The 5.56 mm AR-M5F41 and 7.62 mm AR-M5F41 are a highly effective automatic weapon, used as armament of army troops, reconnoitring detachments, special antiterrorist and police forces, and security services.

Main Features:

  • Gas operated automatic rifle.
  • Fire mode - single and automatic.
  • Hot-die forged and milled receiver for increased durability and service life.
  • Chromium plated barrel bore and chamber.
  • FRP (fiber glass reinforced polycaproamide) lower and upper handguards, pistol grip, and 30-round magazine - heat/cold
    resistant with antiglare matte finish.
  • Right-side folding tubular steel butt with a quick release/lock mechanism.
  • MIL-STD (1913) Picatinny rails integrated on three sides of the lower handguard (at the 3, 6, and 9 o'clock positions).
  • MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes.
  • Ambidextrous safety lever for rapid fire mode switchover.
  • Self-illuminated tritium sights for faster target acquisition at low-light conditions;
  • Possibility of knife-scissors attachment.
  • Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.
Optional Extras (Paid Separately):
  • front sight adjusting kit (in the ratio 1:10);
  • black polymer magazine 40 cartridges;
  • set for magazines coupling;
  • blank fire attachment;
  • knife scissors;
  • front hand grip;
  • silencer.
ACCESSORIES
Cleaning rod
Cleaning rod extender
Sling
Box with accessories (brush, drift, slush brush, screwdriver, scourer)
Magazine  4 pcs
7.62x39 mm
Bag for 4 magazines
Oil can
Packing
Number of rifles in one wooden case, pcs.10
Case dimensions, mm1 380 x 572x 387
Gross Weight of the wooden case, kg97
Volume of the wooden case, m30.3
Specifications
AR-M5F41
Calibre, mm5.567.62
Cartridge, mm5.56x457.62x39
Fire modesingle and automaticsingle and automatic
Rate of fire, rounds/min600600
Practical rate
● Automatic fire, rounds/minup to 100up to 100
● Single fire, rounds/minup to 40up to 40
Muzzle velocity, m/s -710
Muzzle velocity, m/s bullet type M193910-
Muzzle velocity, m/s bullet type SS109870-
Sighting range, m800 800
Maximum firing range, m13501350
Effective firing range, m500400
Magazine capacity, rounds3030
Barrel length, mm415415
Sight radius, mm378378
Overall length, mm930930
Overall length  with folded butt, mm 680680
Weight, kg
● Rifle without magazine4.04.0
● Loaded magazine0.580.72
Principle of functiongas operatedgas operated automatic rifle
System life, rounds15 00015 000
