5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

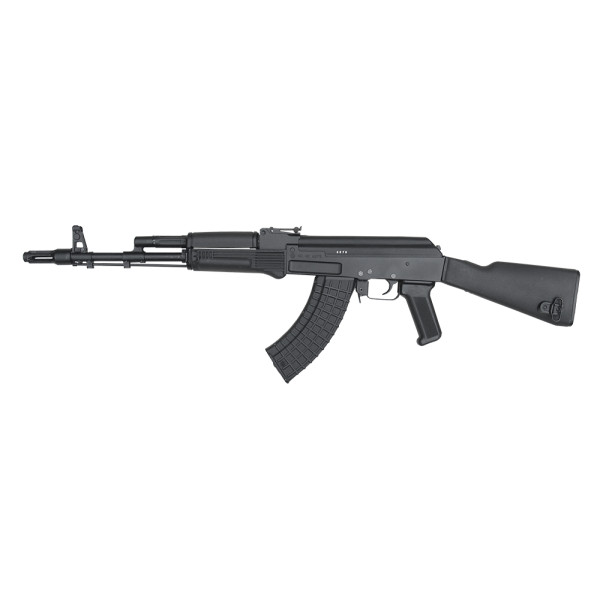

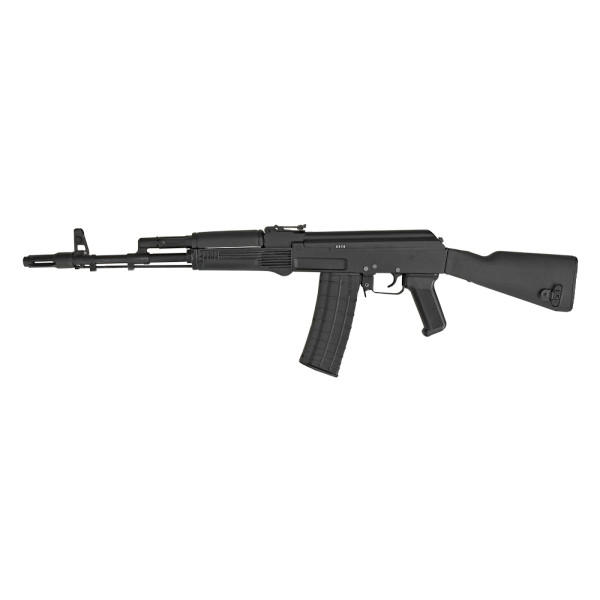

5.56x45 mm and 7.62x39 mm AR-M1

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

5.56x45 mm ARSENAL Assault Rifles AR-M1
NSN: 1005-50-000-0100

7.62x39 mm ARSENAL Assault Rifles AR-M1
NSN: 1005-50-000-1048

The 5.56 mm AR-M1 and 7.62 mm AR-M1 are highly effective automatic weapons, used as armament of combat crews, reconnoitering detachments, special antiterrorist and police troops, and security services.

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuated staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, Butt, and Pistol grip, made from glass fiber reinforced polycaproamide;
The Butt is fixed.
The Assault Rifle design allows the attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL or GP-25 KASTYOR Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

luminous spots on the sights;
20/30 round translucent magazine (for 5.56x45 mm);
black polymer magazines for 5,10 and 40 cartridges (cal. 7.62 mm)
front sight adjusting kit (in the ratio 1:10);
set for magazines coupling;
blank fire attachment;
rail for sighting devices
knife-scissors.
silence

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine - 4 pcs.
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380x530x387
Gross Weight of the wooden case, kg	86
Volume of the wooden case, m³	0.28

Specifications	AR-M1	AR-M1
Calibre, mm	5.56	7.62
Cartridge, mm	5.56x45	7.62x39
Fire mode	single and automatic	single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s	-	710
Muzzle velocity, m/s
● Bullet type M 193	910	-
● Bullet type SS 109	870	-
Sighting range, m	up to 800	800
Maximum firing range, m	1350	1350
Effective firing range, m	500	400
Magazine capacity, rounds	30	30
Barrel length, mm	415	415
Sight radius, mm	370	370
Overall length, mm	940	940
Weight, kg
● Rifle without magazine	3.65	3.65
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
