5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

5.56x45 mm and 7.62x39 mm AR-M14F

5.56x45 mm and 7.62x39 mm AR-M14F
5.56x45 mm and 7.62x39 mm AR-M14F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

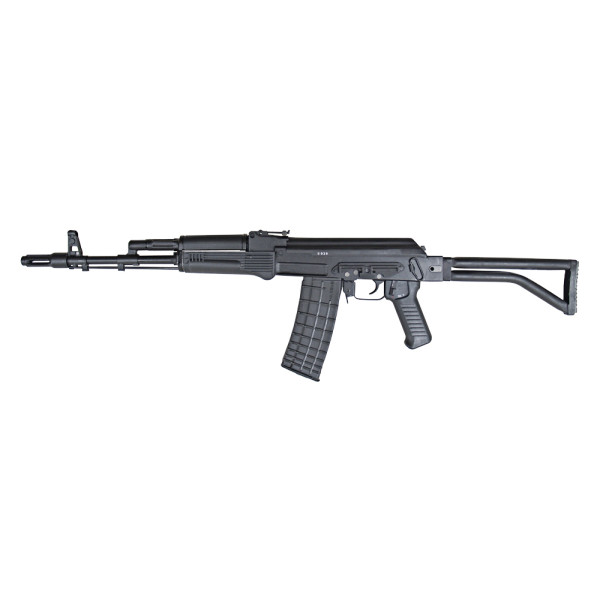

5.56x45 mm ARSENAL Assault Rifles AR-M14F with folding butt

NSN: 1005-50-001-4411

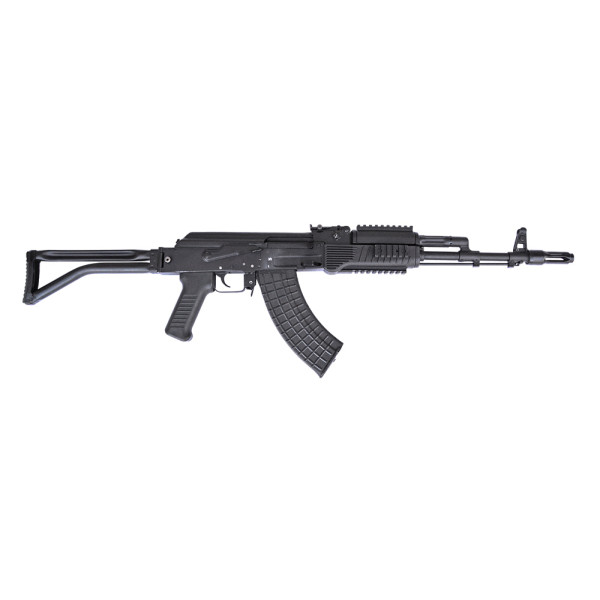

7.62x39 mm ARSENAL Assault Rifles AR-M14F with folding butt

NSN: 1005-50-001-4412



  The 5.56 mm AR-M14F and 7.62 mm AR-M14F are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

  • Receiver, made from hot die forged solid blank followed by milling operations.
  • Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material.
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip and 30-round Magazine – heat/cold resistant with antiglare matte finish.
  • Tritium Self-illuminated Night Sight (3-dot sight system) - extra, used for quick target acquisition at low-light conditions.
  • Metal right-side folding butt.
  • Side mounted scope rail for dovetail based sight carriers with sighting devices.
  • Additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters.
  • Provision for attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL or GP-25 KASTYOR and GP-30 Underbarrel Grenade Launchers, and firing with them.
Optional Extras (Paid Separately):
  • Luminous spots on the sights;
  • 20/30-round translucent polymer magazine (for 5.56x45 mm);
  • Black polymer magazine for 40 cartridges (for 7.62x39 mm);
  • Front sight adjusting kit (in the ratio 1:10);
  • Set for magazines coupling;
  • Blank fire attachment;
  • Knife scissors;
  • Sight carrier with rails MIL-STD 1913 (Picatinny);
  • Front hand grip;
  • Retractable bi-pod.
ACCESSORIES
Cleaning rod
Cleaning rod extension
Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine 4 pcs
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can
Packing
Number of rifles in one wooden case, pcs.10
Case dimensions, mm1 380 x 572x 387
Gross Weight of the wooden case, kg94
Volume of the wooden case, m30.31
Specifications
AR-M14FAR-M14F
Calibre, mm5.567.62
Cartridge, mm5.56x457.62x39
Fire modesingle and automaticsingle and automatic
Rate of fire, rounds/min600600
Practical rate
● Automatic fire, rounds/minup to 100up to 100
● Single fire, rounds/minup to 40up to 40
Muzzle velocity, m/s-710
Muzzle velocity, m/s
● Bullet type M 193910-
● Bullet type SS 109870-
Sighting range, mup to 800up to 800
Maximum firing range, m13501350
Effective firing range, m500400
Magazine capacity, rounds3030
Barrel length, mm415415
Sight radius, mm370370
Overall length, mm
● With extended butt970970
● With folded butt in travelling position720720
Weight without magazine, kg3.753.75
Weight of 30-round loaded magazine, kg0.580.72
Principle of functiongas operatedgas operated
System life, rounds15 00015 000
