5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

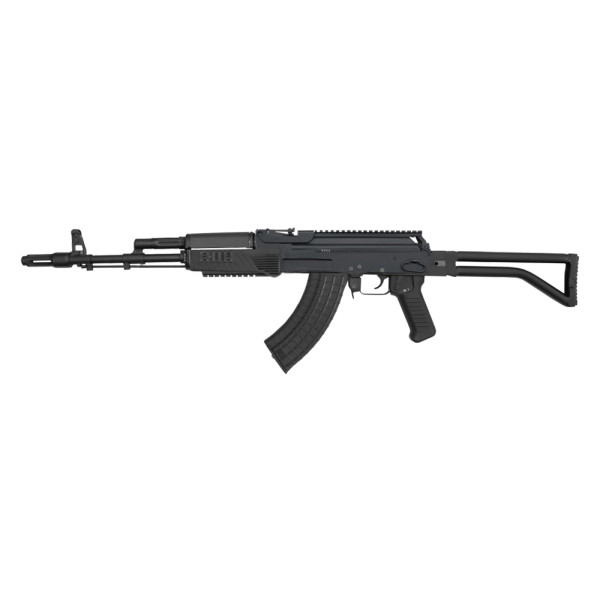

5.56x45 mm and 7.62x39 mm AR-M15F

5.56x45 mm and 7.62x39 mm AR-M15F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

5.56 x45 mm ARSENAL Assault Rifle AR-M15F with folding butt

NSN: 1005-50-001-4776



7.62x39 mm ARSENAL Assault Rifle AR-M15F with folding butt

NSN: 1005-50-001-4775

The 5.56x45 mm and 7.62 mm AR-M15F are a highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

  • Gas operated automatic rifle.
  • Fire mode - single and automatic.
  • Hot-die forged and milled receiver for increased durability and service life.
  • Chromium plated Barrel bore and chamber.
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, 30-round Magazine - heat/cold resistant with antiglare matte finish.
  • Metal butt, folding down.
  • MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions).
  • MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes
  • Self-illuminated tritium sights for faster target acquisition at low-light conditions (optional);
  • Possibility of knife-scissors attachment.
  • Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.
Optional Extras (Paid Separately):
  • 20-round and 30-round translucent polymer magazine;
  • Front sight adjusting kit (in the ratio 1:10);
  • Set for magazines coupling;
  • Blank fire attachment;
  • Knife scissors;
  • Front hand grip;
  • Silencer.
ACCESSORIES
Cleaning rod
Cleaning rod extender
Parade Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine 4 pcs
● 5.56x45 mm & 7.62x39 mm
Bag for 4 magazines
Oil can
Packing
Number of rifles in one wooden case, pcs.10
Case dimensions, mm1 380 x 572x 387
Gross Weight of the wooden case, kg86
Volume of the wooden case, m30.31
Specifications
Calibre, mm5.567.62
Cartridge, mm5.56x457.62x39
Fire modesingle and automaticsingle and automatic
Rate of fire, rounds/min600600
Practical rate
● Automatic fire, rounds/minup to 100 up to 100
● Single fire, rounds/minup to 40up to 40
Muzzle velocity, m/s710
Muzzle velocity, m/s
● Bullet M193910-
● Bullet type SS109870-
Sighting range, mup to  800up to  800
Maximum firing range, m13501350
Effective firing range, m500400
Magazine capacity, rounds3030
Barrel length, mm415415
Sight radius, mm370370
Overall length, mm 910 910
Overall length with folded butt, mm660660
Weight without magazine, kg4.04.0
Weight of 30-round loaded magazine, kg0.580.72
Principle of functiongas operated automatic riflegas operated automatic rifle
System life, rounds15 00015 000
